Standard Toggle Switch - MTS-203

Availability: Directly available from warehouse in Eindhoven
SKU: 000535

Based on 0 review(s) - Write a review

€0.80

Ex Tax: €0.66

10 or more €0.75

20 or more €0.70

50 or more €0.65

100 or more €0.60

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

A toggle switch with a total of X positions (of which 3 fixed (on/off) position and 0 spring-back (reset/momentairy) position). The middle pin is connected to one of the outer pins, depending on the position of the switch.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Standard Toggle Switch - MTS-203

Average Rating:

This product has 0 review(s) in total.

Datasheet: 003542_MTSSeries.pdf

Tags: Standard Toggle Switch - MTS-203 , MTS-203 , Toggle Switches

Specifications

General
Brand	No brand
Manufacturer model/SKU	MTS-203
General physical appearance
Main color	Blue
Weight [g]	6
Dimension X [mm]	13
Dimension Y [mm]	13
Dimension Z [mm]	29
Mounting options	Screw thread
Maximum mounting thickness [mm]	6.0
Recommended mounting dimensions [mm]	ø6
Thread size	M6x0.75
Thread length [mm]	9.0
Form factor	Individual component
Switch
Switching method	Physical (current/power switch)
Switch type	Toggle
Number of channels/gangs	1
Number of poles per channel	2
Number of fixed (on-off) positions per channel	3
Number of spring-back (reset) positions per channel	0
Contact(s)	NC (normally closed) NO (normally open)
Lifespan	10000
Maximum switching voltage [V AC]	250
Maximum switching current per channel (resistive load) [A]	3 (@250V AC) 6 (@125V AC)
Connectors
Switch connector(s)	Wire solder pin(s)/pad(s)
Package contents

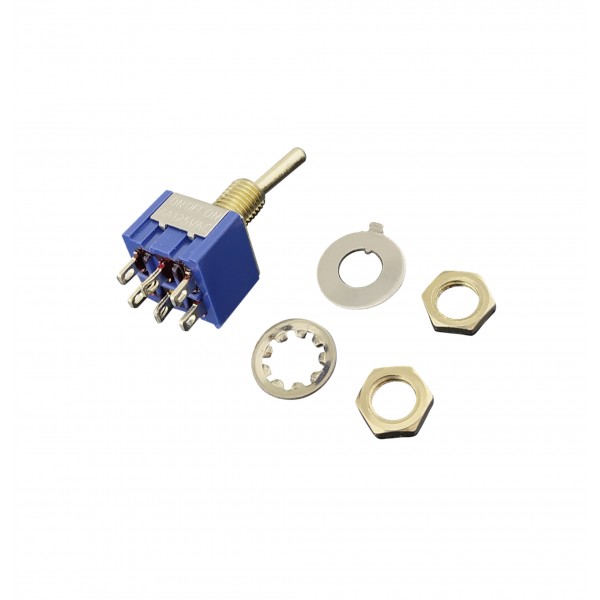

Package contents	2x Nut 1x Toggle switch 1x Toothed washer 1x Axle washer
