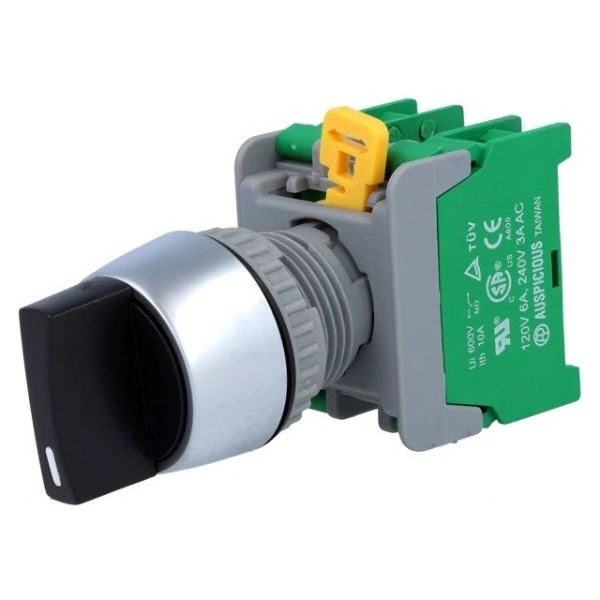

Auspicious Selector Switch - Rotary Switch - 3 Positions - Black

This selector switch from Auspicious consists of three parts. The lower part is the contact block, which also determines the electrical specifications of the switch. This part can be replaced by others of the same size. With this switch it is possible to use a total of two contact blocks. In the case of this switch, one of the two contact blocks is pressed when the rotary knob is turned to the left or right. When the rotary knob is in the neutral position, no contact blocks are pressed. For spare and/or extra contact blocks see the following pages:

• Normally Closed Contact Block
• Normally Open Contact Block

The top part is the rotary knob, and the middle part brings the switch and contact block together. Just like the contact block, the rotary knob is removable/replaceable from the center piece.

Specifications:

• Maximum number of contact blocks: 2 (It is possible to add a third, however it will not respond to the rotary knob)
• Mounting diameter: 22mm
• Maximum thickness of mounting material: 10mm
• IP value: IP65

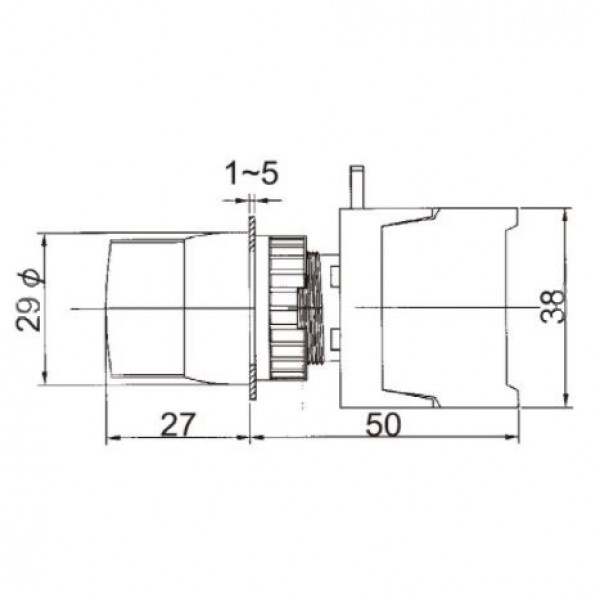

• Dimensions: See images

For contact block specifications see the page(s) above.

Package contents:

• 1x Selector switch
• 2x Normally open contact
