M5Stack Step16 Unit - Rotary Encoder with Display - I2C

M5Stack Step16 Unit - Rotary Encoder with Display - I2C
M5Stack Step16 Unit - Rotary Encoder with Display - I2C
M5Stack Step16 Unit - Rotary Encoder with Display - I2C
M5Stack Step16 Unit - Rotary Encoder with Display - I2C
M5Stack Step16 Unit - Rotary Encoder with Display - I2C
M5Stack Step16 Unit - Rotary Encoder with Display - I2C
M5Stack Step16 Unit - Rotary Encoder with Display - I2C
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007323
Based on 0 review(s) - Write a review
€9.25
Ex Tax: €7.64
Add to Cart
Add to wishlist

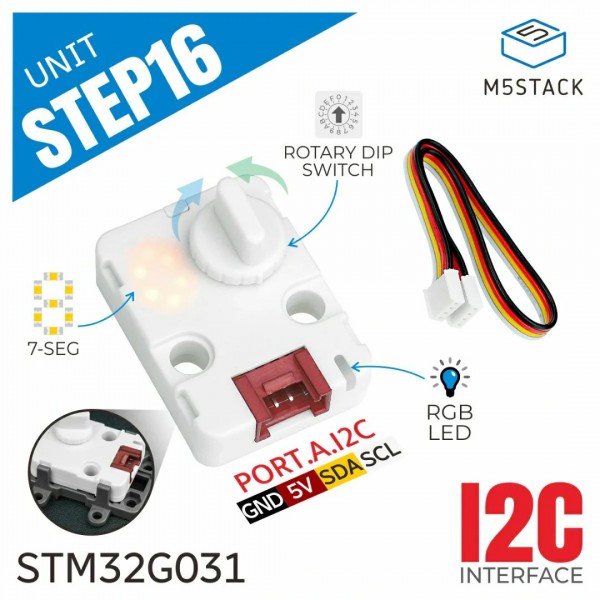

A 16-position rotary encoder module from M5Stack that can be read via I2C. This unit also features an integrated 7-segment display and a digital RGB LED.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Step16 Unit - Rotary Encoder with Display - I2C

This product has 0 review(s) in total.

Tags: M5Stack , Unit , M5Stack Step16 Unit - Rotary Encoder with Display - I2C , 007323 , M5Stack , U198 , Display , Enclosure , Rotary encoder , Digital LED(s) , I2C

Specifications

General
Brand M5Stack
Manufacturer model/SKU U198
Features Display
Enclosure
Digital LED(s)
Rotary encoder
General physical appearance
Main color White
Weight [g] 6
Dimension X [mm] 32
Dimension Y [mm] 24
Dimension Z [mm] 17
Mounting options LEGO (compatible) holes
Form factor M5Stack Unit
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Default I2C address 0x48
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] 4.7
Display
Type Segment
Number of characters 1
Number of segments per character 7
Pixel colors Red
Light source
Type LED
LED (driver) chip WS2812C
Light color RGB
Rotary encoder
Encoder (chip) GSMR-16
Encoder type Absolute
Encoder technology Mechanical
Number of steps/pulses per rotation 16
Number of detent positions 16
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Enclosure
Material Plastic (unknown material)
Package contents
Package contents 1x Step16 Unit
1x HY2.0-4P Grove Cable (20cm)
