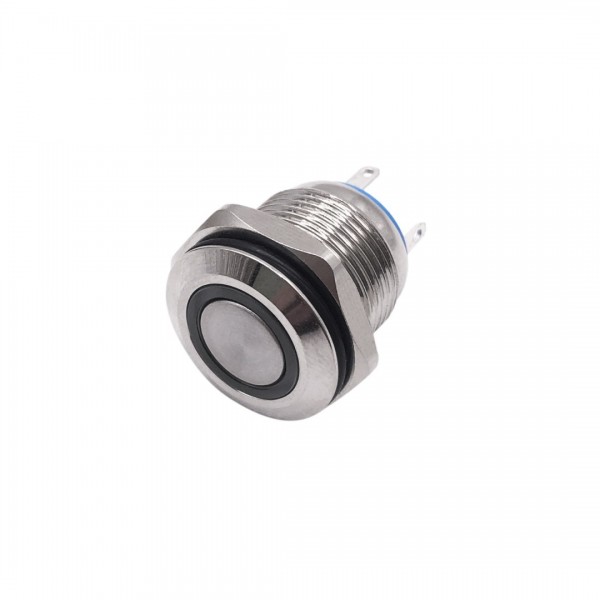

Metal Push Button 16x18mm - Reset - with 3-6V Red LED

Availability: Directly available from warehouse in Eindhoven
SKU: 005198

Based on 0 review(s) - Write a review

€3.25

Ex Tax: €2.69

10 or more €3.00

20 or more €2.75

50 or more €2.50

100 or more €2.25

200 or more €2.00

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Description
Reviews

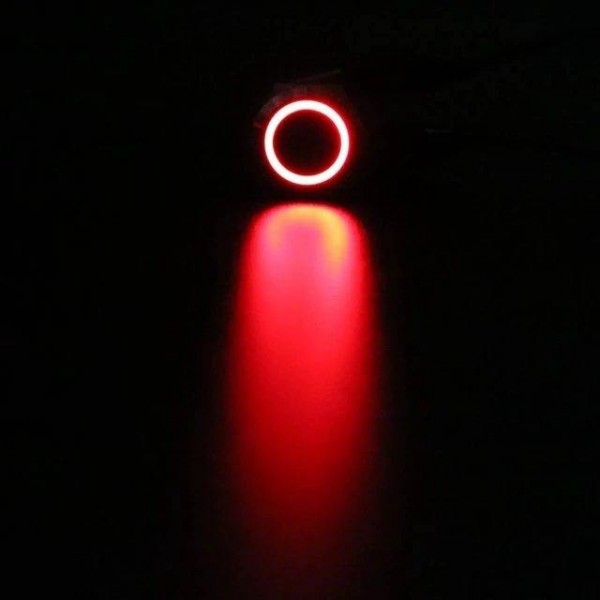

A push button with LED that can be used as a reset button. The button springs back after being pressed (no on/off switch). The LED is double such that the polarity does not matter, it also comes with a built-in series resistor. The LED pins are indicated by the two dots.

Please login or register to review

Reviews Over Metal Push Button 16x18mm - Reset - with 3-6V Red LED

Average Rating:

This product has 0 review(s) in total.

Tags: Metal Push Button 16x18mm - Reset - with 3-6V Red LED , ABS16C-P1-E-R , Push Buttons and Switches

Specifications

General
Brand	No brand
Lifespan [h]	40000
Features	LED

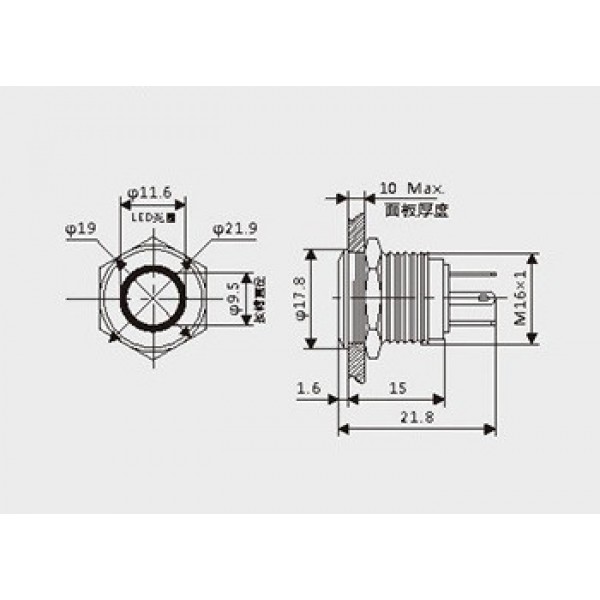

General physical appearance
Main color	Gray/silver
Weight [g]	9
Dimension X [mm]	18
Dimension Y [mm]	18
Dimension Z [mm]	18
Material	Nickel plated brass
Water and dust protection	IP66
Mounting options	Screw thread
Maximum mounting thickness [mm]	10
Recommended mounting dimensions [mm]	ø16
Thread size	M16x1
Thread length [mm]	12
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	6
Indication average current consumption [mA]	15 (@6V)
LED
LED color	Red
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	1
Number of poles per channel	1
Number of fixed (on-off) positions per channel	1
Number of spring-back (reset) positions per channel	1
Contact(s)	NO (normally open)
Maximum switching voltage [V AC]	250
Maximum switching voltage [V DC]	24
Switching voltage equal to supply voltage	No
Maximum switching current per channel (resistive load) [A]	3
Connectors

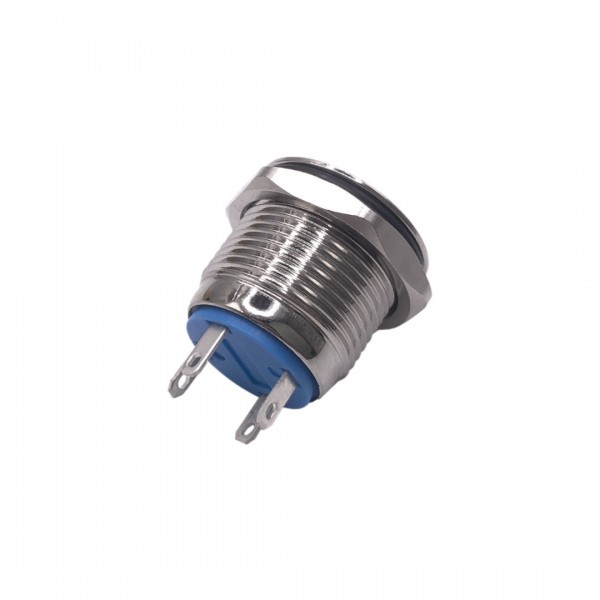

Power supply connector(s)	Wire solder pin(s)/pad(s)
Switch connector(s)	Wire solder pin(s)/pad(s)
Package contents

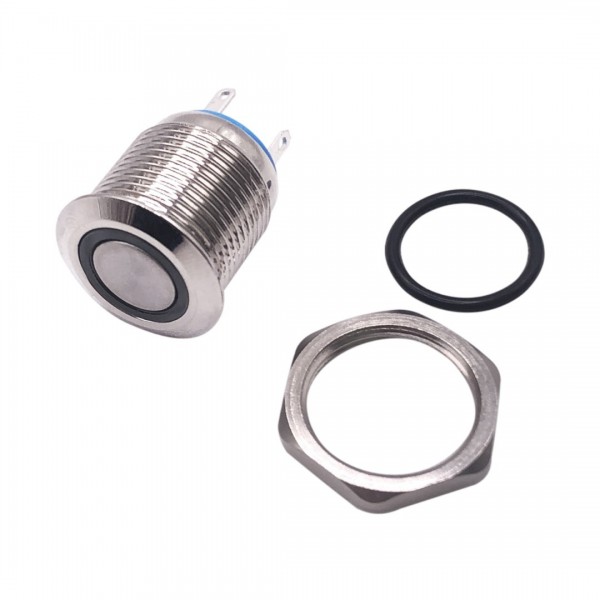

Package contents	1x Nut 1x Rubber ring 1x Push button with LED
