Metal Push Button 16x15mm - Reset

Based on 0 review(s) - Write a review

€3.00

Ex Tax: €2.48

10 or more €2.75

20 or more €2.50

50 or more €2.25

100 or more €2.00

200 or more €1.75

500 or more €1.50

1000 or more €1.25

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

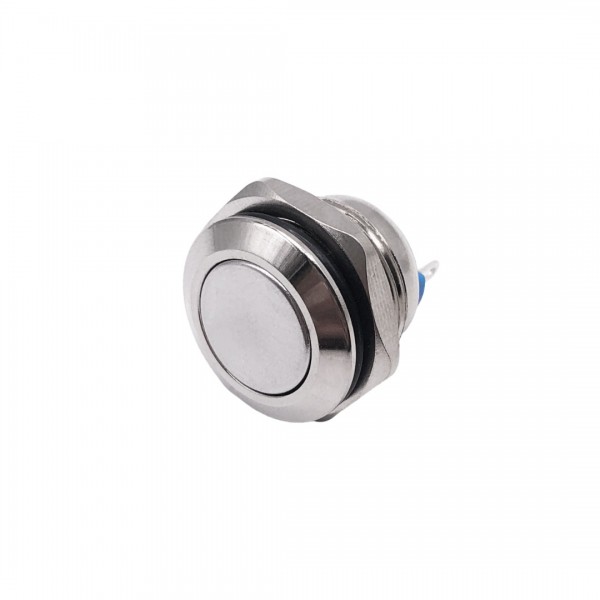

A metal push button that can be used as a reset button. The button springs back after being pressed (no on/off switch).

Please login or register to review

This product has 0 review(s) in total.

Tags: Metal Push Button 16x15mm - Reset , ABS16C-P1 , Push Buttons and Switches

General
Brand	No brand
General physical appearance
Main color	Gray/silver
Weight [g]	9
Dimension X [mm]	18
Dimension Y [mm]	18
Dimension Z [mm]	15
Material	Nickel plated brass
Water and dust protection	IP66
Mounting options	Screw thread
Maximum mounting thickness [mm]	6.0
Recommended mounting dimensions [mm]	ø16
Thread size	M16x1
Thread length [mm]	8.5
Form factor	Individual component
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	1
Number of poles per channel	1
Number of fixed (on-off) positions per channel	1
Number of spring-back (reset) positions per channel	1
Contact(s)	NO (normally open)
Maximum switching voltage [V AC]	250
Maximum switching voltage [V DC]	24
Maximum switching current per channel (resistive load) [A]	3
Connectors
Switch connector(s)	Wire solder pin(s)/pad(s)
Package contents

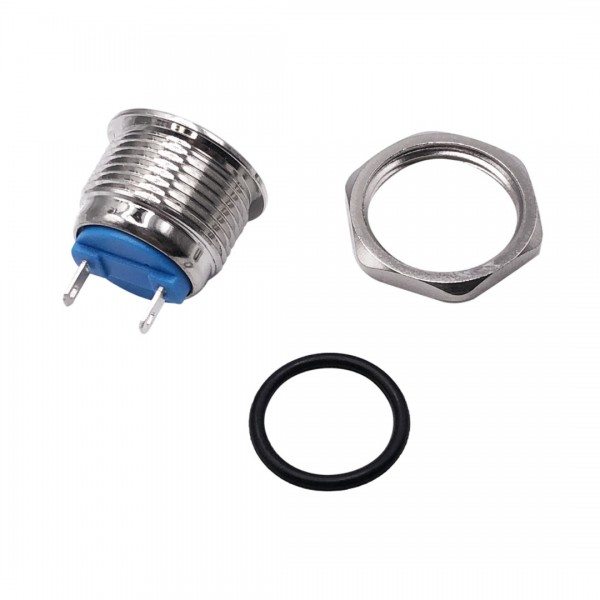

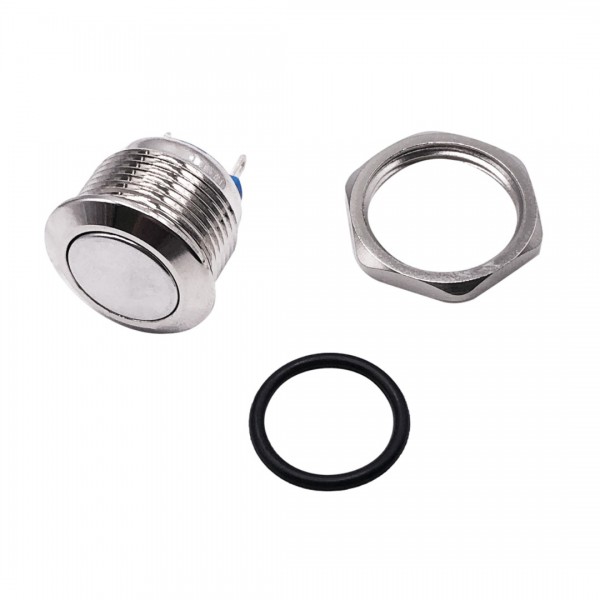

Package contents	1x Nut 1x Rubber ring 1x Button
