Name: Metal Push Button 16mm - Reset - with 3-6V RGB LED - ABD16C-P11-E-RGB6V
SKU: 005766
Price: 3.25 EUR
Availability: OutOfStock

Metal Push Button 16mm - Reset - with 3-6V RGB LED

2-4 Weeks

Metal Push Button 16mm - Reset - with 3-6V RGB LED

Availability: 2-4 Weeks
SKU: 005766

Based on 0 review(s) - Write a review

€3.25

Ex Tax: €2.69

10 or more €3.00

20 or more €2.75

50 or more €2.50

100 or more €2.25

Qty

Add to Cart

Add to wishlist

Not in stock

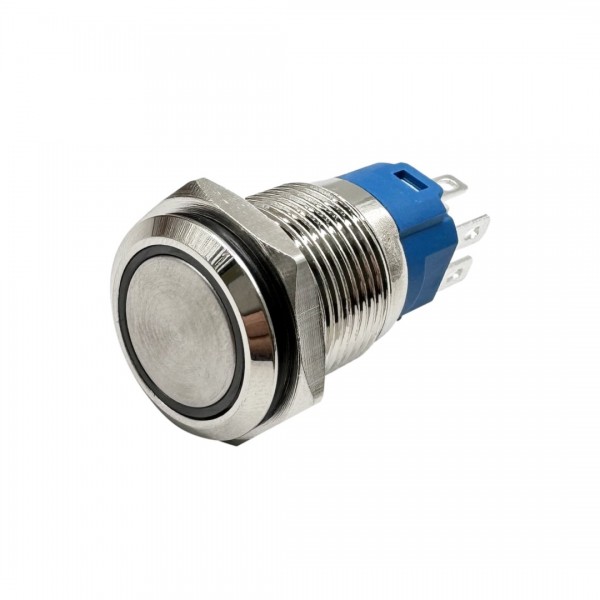

A push button with LED that can be used as a reset button. The button springs back after pressing it (no on/off switch). The LEDs are double such that the polarity does not matter, they also come with a built-in series resistors.

To easilly connect the button, this Connector Cable can be used (not included).

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Metal Push Button 16mm - Reset - with 3-6V RGB LED

Average Rating:

This product has 0 review(s) in total.

Certificate of Compliance (CoC): 005766_CoC.pdf

Tags: Manual Switches , Push Buttons and Switches , Metal Push Button 16mm - Reset - with 3-6V RGB LED , 005766 , No brand , LED

Specifications

General
Brand	No brand
Norm conformity	RoHS
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	55
Lifespan [h]	40000
Features	LED
General physical appearance
Main color	Gray/silver
Weight [g]	12
Dimension X [mm]	18
Dimension Y [mm]	18
Dimension Z [mm]	28
Material	Nickel plated brass
Water and dust protection	IP65
Mounting options	Screw thread
Maximum mounting thickness [mm]	13
Recommended mounting dimensions [mm]	ø16
Thread size	M16x1
Thread length [mm]	15
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	6
Indication average current consumption [mA]	15 (@6V per LED)
Light source
Type	LED
Light color	RGB
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	1
Number of poles per channel	1
Number of fixed (on-off) positions per channel	1
Number of spring-back (reset) positions per channel	1
Contact(s)	NO (normally open) NC (normally closed)
Maximum switching voltage [V AC]	250
Maximum switching voltage [V DC]	24
Switching voltage equal to supply voltage	No
Maximum switching current per channel (resistive load) [A]	3

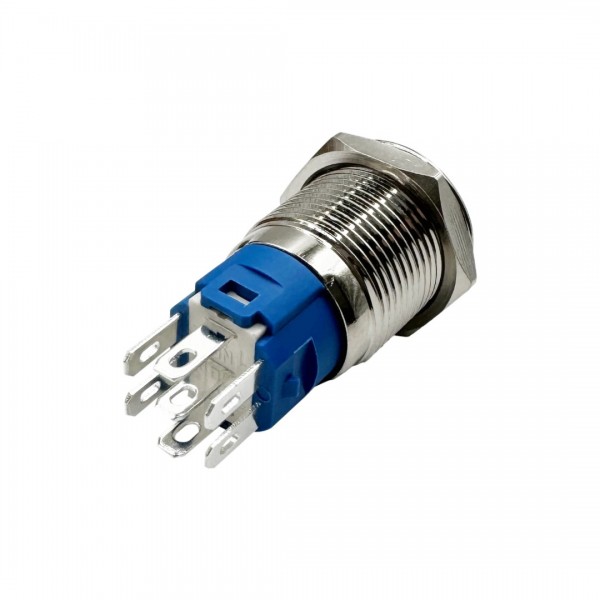

Connectors
Power supply connector(s)	Disconnect male 2.8x0.5mm
Switch connector(s)	Disconnect male 2.8x0.5mm

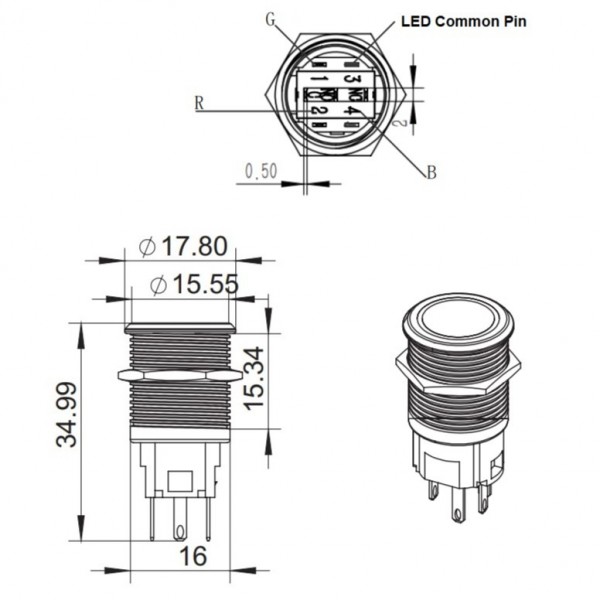

Pinout
Common (switch)	C
Normally closed (NC)	NC
Normally closed (NC)	NO
Red LED	2
Green LED	1
Blue LED	4
Common LED	3
Package contents

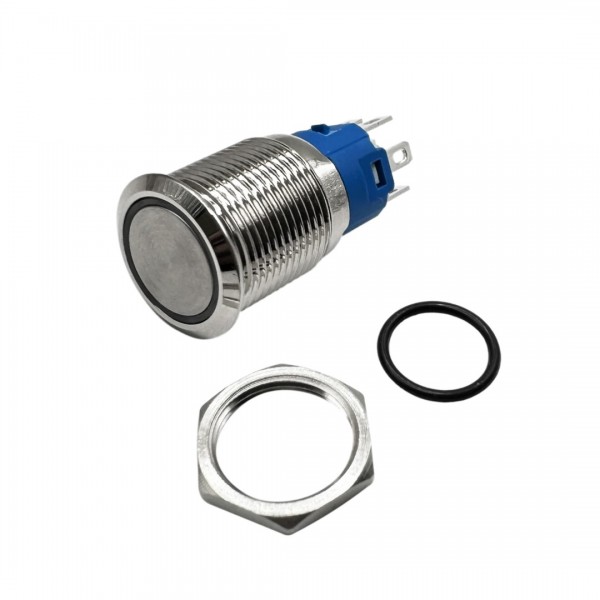

Package contents	1x Nut 1x Rubber ring 1x Push button with LED
