Metal Push Button 16mm - Raised - On-Off - with 3-6V RGB LED

Availability: Directly available from warehouse in Eindhoven
SKU: 005808

Based on 0 review(s) - Write a review

€3.25

Ex Tax: €2.69

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Description
Reviews

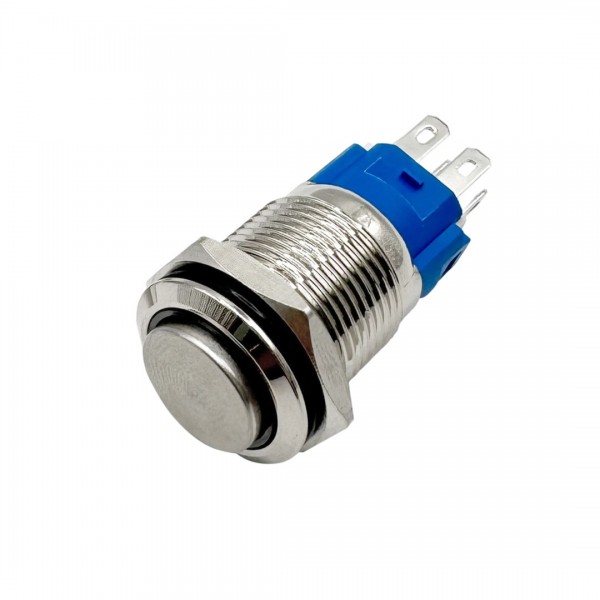

A push button with LED that can be used as a on/off button. After pressing the button, the button will remain in a different position (lower or higher). The LEDs are double such that the polarity does not matter, they also come with a built-in series resistors. In this variant, the button is raised and therefore protrudes slightly from the casing.

To easilly connect the button, this Connector Cable can be used (not included).

Please login or register to review

Reviews Over Metal Push Button 16mm - Raised - On-Off - with 3-6V RGB LED

Average Rating:

This product has 0 review(s) in total.

Tags: Metal Push Button 16mm - Raised - On-Off - with 3-6V RGB LED , ABD16C-G11Z-E-RGB6V , Push Buttons and Switches

Specifications

General
Brand	No brand
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	55
Lifespan [h]	40000
Features	LED
General physical appearance
Main color	Gray/silver
Weight [g]	13
Dimension X [mm]	18
Dimension Y [mm]	18
Dimension Z [mm]	30
Material	Nickel plated brass
Water and dust protection	IP65
Mounting options	Screw thread
Maximum mounting thickness [mm]	13
Recommended mounting dimensions [mm]	ø16
Thread size	M16x1
Thread length [mm]	15
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	6
Indication average current consumption [mA]	15 (@6V per LED)
LED
LED color	RGB
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	1
Number of poles per channel	1
Number of fixed (on-off) positions per channel	2
Number of spring-back (reset) positions per channel	0
Contact(s)	NC (normally closed) NO (normally open)
Maximum switching voltage [V AC]	250
Maximum switching voltage [V DC]	24
Switching voltage equal to supply voltage	No
Maximum switching current per channel (resistive load) [A]	3

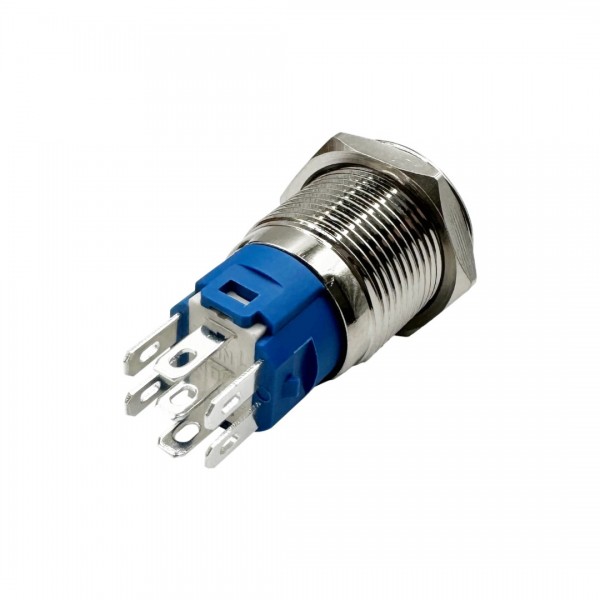

Connectors
Power supply connector(s)	Disconnect male 2.8x0.5mm
Switch connector(s)	Disconnect male 2.8x0.5mm
Pinout
Common (switch)	C
Normally closed (NC)	NC
Normally closed (NC)	NO
Red LED	2
Green LED	1
Blue LED	4
Common LED	3
Package contents

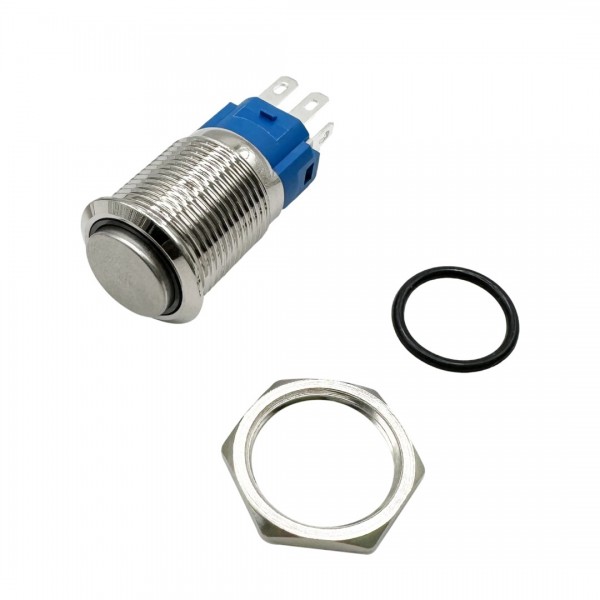

Package contents	1x Nut 1x Rubber ring 1x Push button with LED
