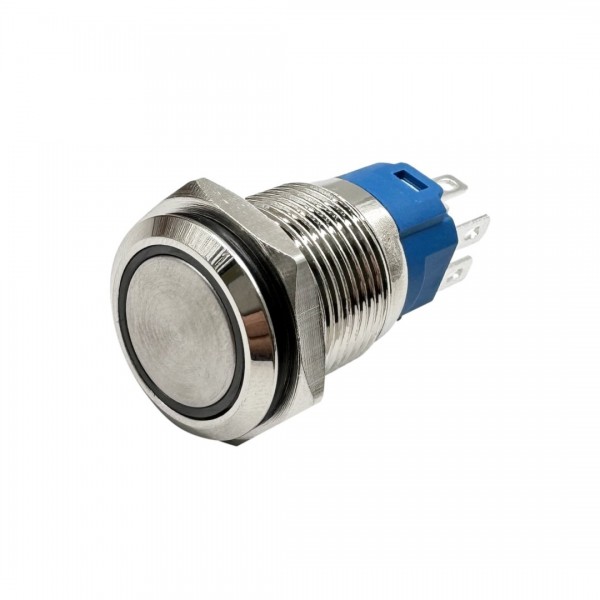

Metal Push Button 16mm - On-Off - with 3-6V RGB LED

Availability: Directly available from warehouse in Eindhoven
SKU: 005807

Based on 0 review(s) - Write a review

€3.25

Ex Tax: €2.69

10 or more €3.00

20 or more €2.75

50 or more €2.50

100 or more €2.25

200 or more €2.00

500 or more €1.75

1000 or more €1.60

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

Description
Reviews

A push button with LED that can be used as a on/off button. After pressing the button, the button will remain in a different position (lower or higher). The LEDs are double such that the polarity does not matter, they also come with a built-in series resistors.

To easilly connect the button, this Connector Cable can be used (not included).

Please login or register to review

Reviews Over Metal Push Button 16mm - On-Off - with 3-6V RGB LED

Average Rating:

This product has 0 review(s) in total.

Tags: Metal Push Button 16mm - On-Off - with 3-6V RGB LED , ABD16C-P11Z-E-RGB6V , Push Buttons and Switches

Specifications

General
Brand	No brand
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	55
Lifespan [h]	40000
Features	LED
General physical appearance
Main color	Gray/silver
Weight [g]	12
Dimension X [mm]	18
Dimension Y [mm]	18
Dimension Z [mm]	28
Material	Nickel plated brass
Water and dust protection	IP65
Mounting options	Screw thread
Maximum mounting thickness [mm]	13
Recommended mounting dimensions [mm]	ø16
Thread size	M16x1
Thread length [mm]	15
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	6
Indication average current consumption [mA]	15 (@6V per LED)
LED
LED color	RGB
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	1
Number of poles per channel	1
Number of fixed (on-off) positions per channel	2
Number of spring-back (reset) positions per channel	0
Contact(s)	NC (normally closed) NO (normally open)
Maximum switching voltage [V AC]	250
Maximum switching voltage [V DC]	24
Switching voltage equal to supply voltage	No
Maximum switching current per channel (resistive load) [A]	3

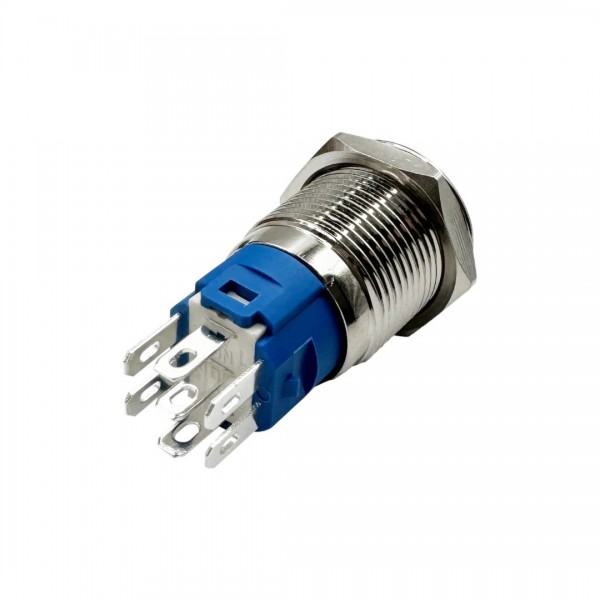

Connectors
Power supply connector(s)	Disconnect male 2.8x0.5mm
Switch connector(s)	Disconnect male 2.8x0.5mm

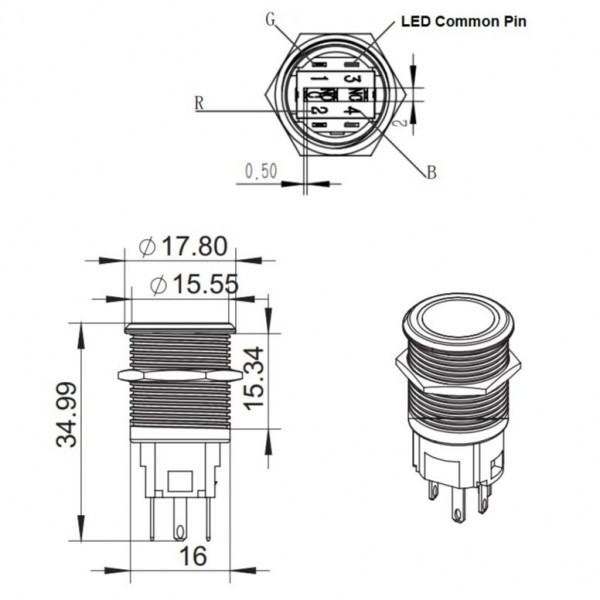

Pinout
Common (switch)	C
Normally closed (NC)	NC
Normally closed (NC)	NO
Red LED	2
Green LED	1
Blue LED	4
Common LED	3
Package contents
Package contents	1x Nut 1x Rubber ring 1x Push button with LED
