M5Stack Byte Button Unit - with 8 Buttons

M5Stack Byte Button Unit - with 8 Buttons
M5Stack Byte Button Unit - with 8 Buttons
M5Stack Byte Button Unit - with 8 Buttons
M5Stack Byte Button Unit - with 8 Buttons
M5Stack Byte Button Unit - with 8 Buttons
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006775
€8.50
Ex Tax: €7.02

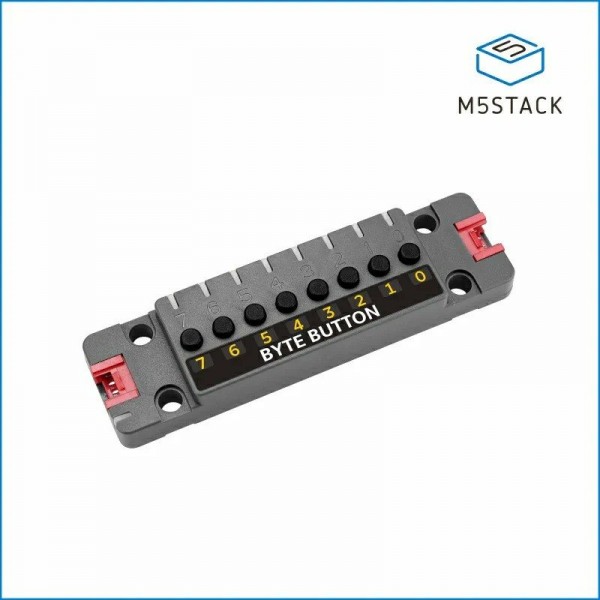

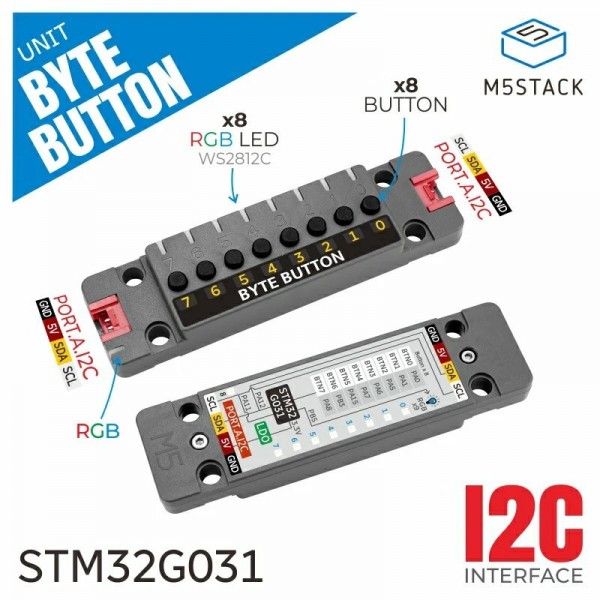

A module of M5Stack with 8 tactile buttons and digital LEDs. The module contains a microcontroller that reads the button states and controls the digital LEDs. The microcontroller communicates via I2C with an external microcontroller.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Byte Button Unit - with 8 Buttons

This product has 0 review(s) in total.

Specifications

General
Brand M5Stack
Manufacturer model/SKU U192
Minimum operating temperature [°C] 0
Maximum operating temperature [°C] 40
Features Enclosure
Digital LED(s)
General physical appearance
Main color Gray/silver
Weight [g] 16
Dimension X [mm] 88
Dimension Y [mm] 24
Dimension Z [mm] 12
Mounting options LEGO (compatible) holes
Form factor Module (general)
M5Stack Unit
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Default I2C address 0x47
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] 4.7
LED
LED (driver) chip WS2812C
LED color RGB
Number of LEDs 9
Switch
Switching method Physical (sensor switch)
Switch type Push
Number of channels/gangs 8
Number of fixed (on-off) positions per channel 1
Number of spring-back (reset) positions per channel 1
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x Byte Button Unit
1x Grove female cable
