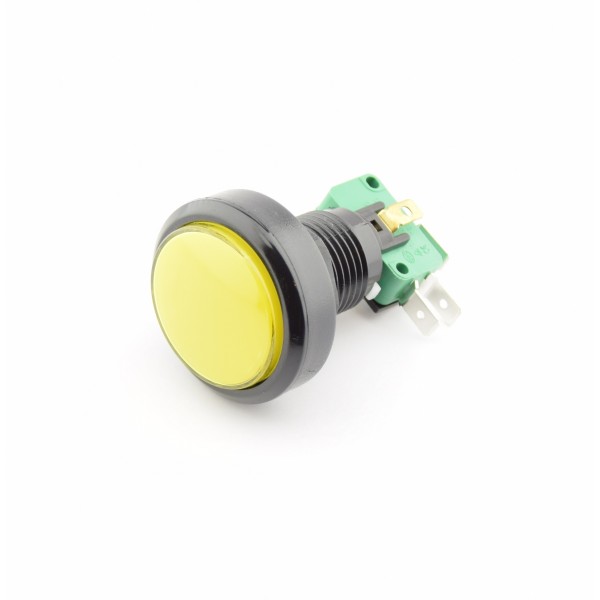

Large Yellow Push button 24mm of 40mm - Reset

A large push button that can be used as a "reset" button. The button springs back after pressing it (no on-off switch). In addition, this button can be mounted in both a 24mm and 40mm hole. This can be chosen with the supplied plastic mounting parts.

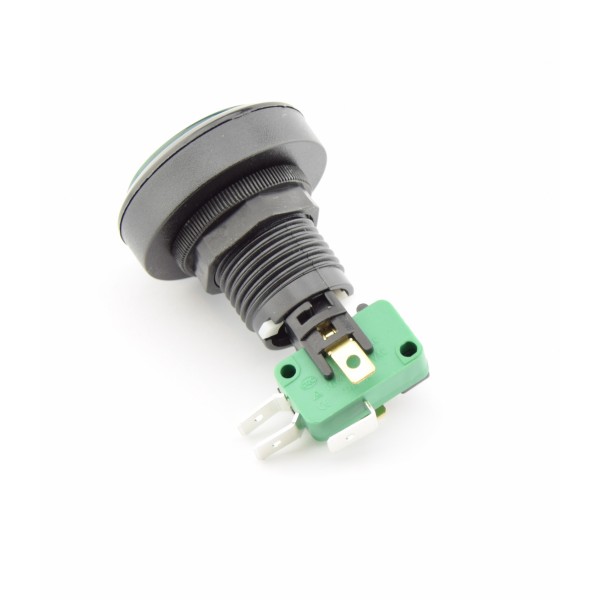

Pin descriptions:

• NC: Normally Closed (connected to the Common when the button is not pressed)
• NO: Normally Open (connected to the Common when the button is pressed)
• COM: "Common" connected to NC or NO (depending on whether the button is pressed or not)
• Gold colored pins on the outside: direct connection to the lamp holder

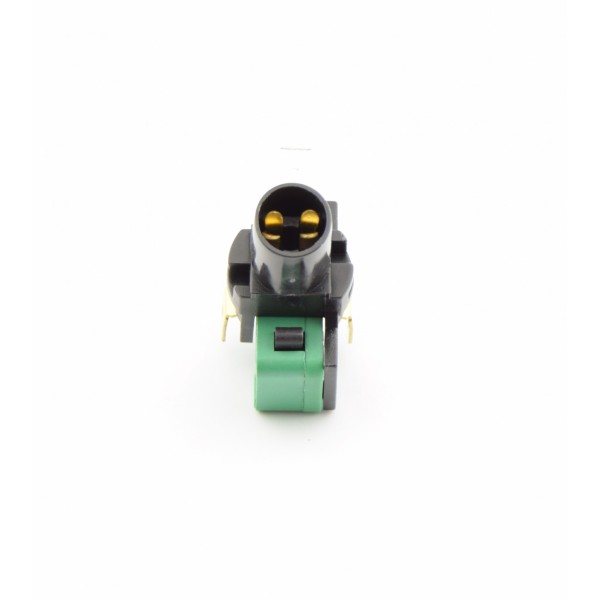

A light can also be built into this button. See the 4th image for this. The holder is suitable for LED's of the type "T10" or "W5W", just like in cars. The voltage for the light depends on the specifications of the lamp.

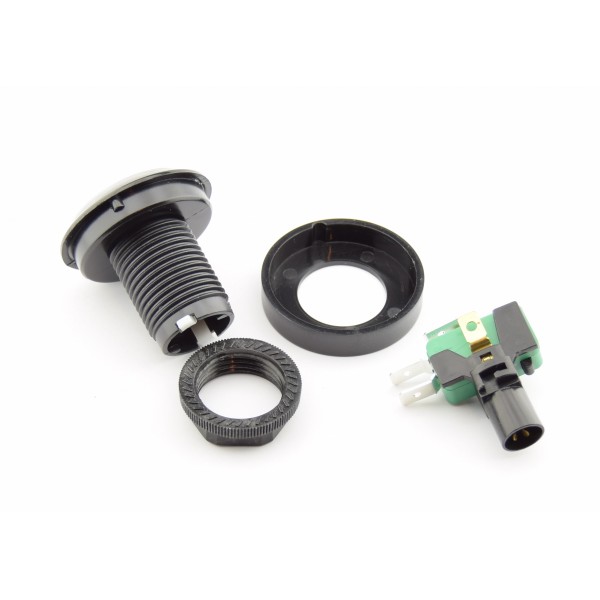

Instructions for disassembling the switch (follow the steps in reverse for assembly):

1. Hold the black plastic that has the threads on it with one hand.
2. With the other hand, hold the green switch and turn it slightly counterclockwise.

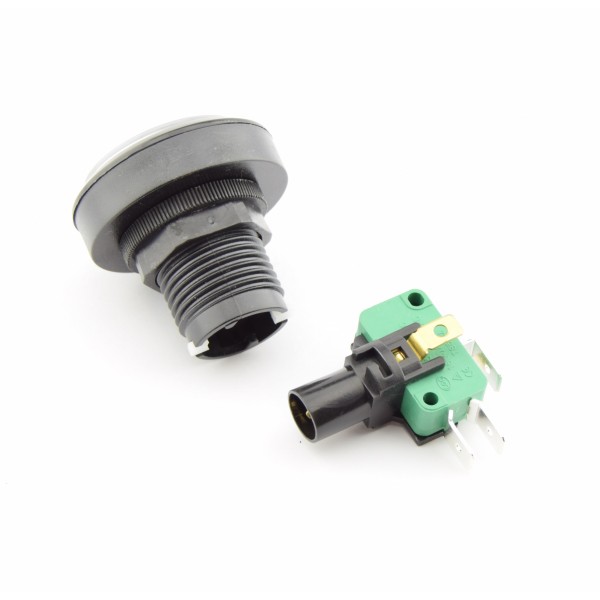

3. Now the switch part separates from the button for easy installation or placing a light.

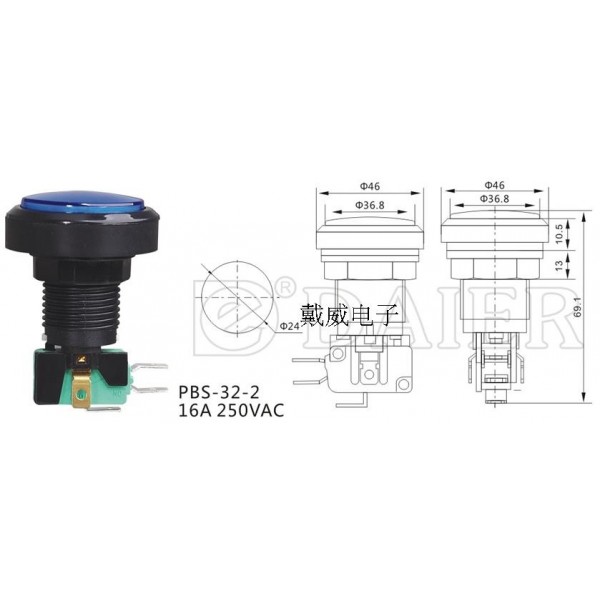

See the images for size information.
