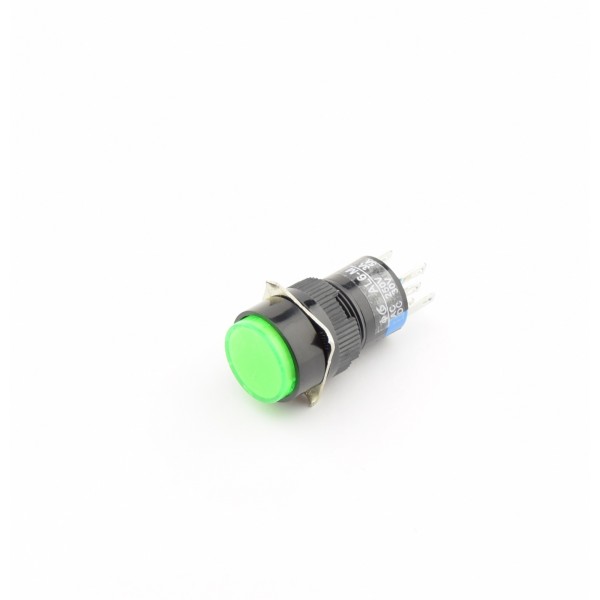

Green Push button 16mm - Reset - With 6.3V LED Lighting

Availability: Directly available from warehouse in Eindhoven
SKU: 000807

Based on 1 review(s) - Write a review

€3.00

Ex Tax: €2.48

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

A push button with LED that can be used as a reset button. The button springs back after being pressed (no on/off switch). The LED is double such that the polarity does not matter, it also comes with a built-in series resistor.

Please login or register to review

Reviews Over Green Push button 16mm - Reset - With 6.3V LED Lighting

Average Rating:

This product has 1 review(s) in total.

Tags: Green Push button 16mm - Reset - With 6.3V LED Lighting , AB6Y-M-6.3V-GREEN , Push Buttons and Switches

Specifications

General
Brand	No brand
Features	LED

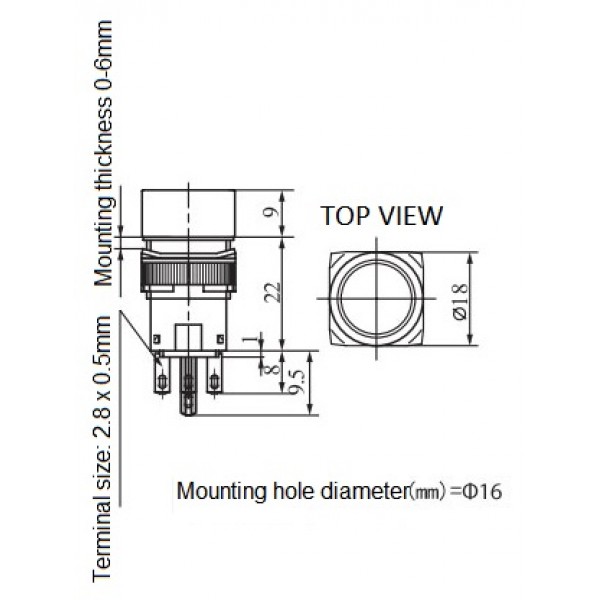

General physical appearance
Main color	Green
Weight [g]	7
Dimension X [mm]	18
Dimension Y [mm]	18
Dimension Z [mm]	32
Material	Plastic (unknown material)
Mounting options	Screw thread
Maximum mounting thickness [mm]	7.0
Recommended mounting dimensions [mm]	ø16
Thread size	M16x1
Thread length [mm]	11
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	3
Maximum supply voltage [V DC]	6.3
Indication average current consumption [mA]	4
LED
LED color	Green
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	1
Number of poles per channel	1
Number of fixed (on-off) positions per channel	1
Number of spring-back (reset) positions per channel	1
Contact(s)	NC (normally closed) NO (normally open)
Maximum switching voltage [V AC]	250
Maximum switching voltage [V DC]	30
Switching voltage equal to supply voltage	No
Maximum switching current per channel (resistive load) [A]	3
Connectors
Power supply connector(s)	Disconnect male 2.8x0.5mm
Switch connector(s)	Disconnect male 2.8x0.5mm
Pinout
Common (switch)	C
Normally closed (NC)	NC
Normally closed (NC)	NO
Positive LED power supply	+
Negative LED power supply	-
Package contents

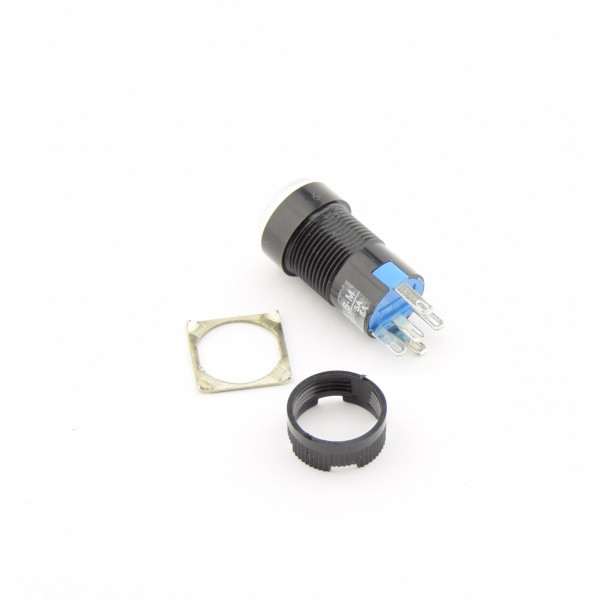

Package contents	1x Push button with LED 1x Plastic mounting nut 1x Retaining ring
