Green Button 7mm - Reset

Based on 0 review(s) - Write a review

€0.50

Ex Tax: €0.41

10 or more €0.45

20 or more €0.40

50 or more €0.35

100 or more €0.30

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

A push button that can be used as a reset button. The button springs back after being pressed (no on/off switch).

Please login or register to review

This product has 0 review(s) in total.

Tags: Green Button 7mm - Reset , PBS-110-GREEN , Push Buttons and Switches

General
Brand	No brand
Product series	PBS-110
General physical appearance
Main color	Green
Weight [g]	3
Dimension X [mm]	10
Dimension Y [mm]	10
Dimension Z [mm]	21
Material	Metal (unknown alloy) Plastic (unknown material)
Mounting options	Screw thread

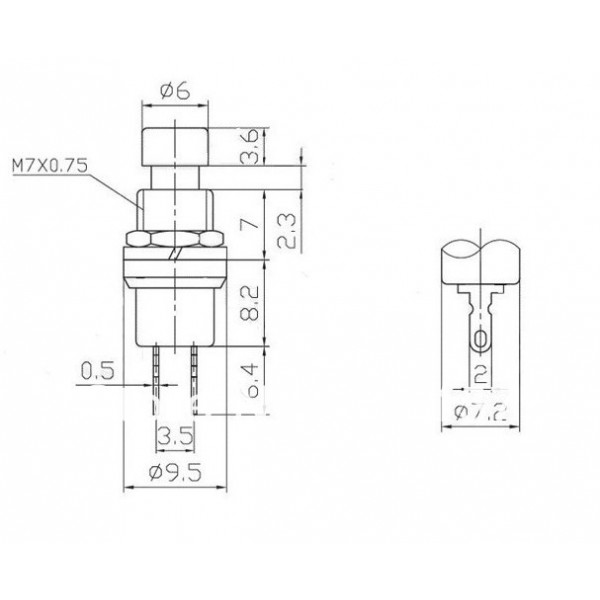

Maximum mounting thickness [mm]	3.0
Recommended mounting dimensions [mm]	ø7
Thread size	M7x0.75
Thread length [mm]	5.5
Form factor	Individual component
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	1
Number of poles per channel	1
Number of fixed (on-off) positions per channel	1
Number of spring-back (reset) positions per channel	1
Contact(s)	NO (normally open)
Maximum switching voltage [V AC]	250
Switching voltage equal to supply voltage	No
Maximum switching current per channel (resistive load) [A]	1
Connectors
Switch connector(s)	Wire solder pin(s)/pad(s)
Package contents
Package contents	1x Nut 1x Retaining ring 1x Push button
