Black Push button 12mm - Reset - PBS-33B

Based on 0 review(s) - Write a review

€0.65

Ex Tax: €0.54

10 or more €0.60

20 or more €0.55

50 or more €0.50

100 or more €0.45

200 or more €0.40

Qty

Add to Cart

Add to wishlist

500+ pieces in stock

A push button that can be used as a reset button. The button springs back after being pressed (no on/off switch).

Please login or register to review

This product has 0 review(s) in total.

Tags: Black Push button 12mm - Reset - PBS-33B , PBS-33B-BLACK , Push Buttons and Switches

General
Brand	No brand
Product series	PBS-33B
General physical appearance
Main color	Black
Weight [g]	4

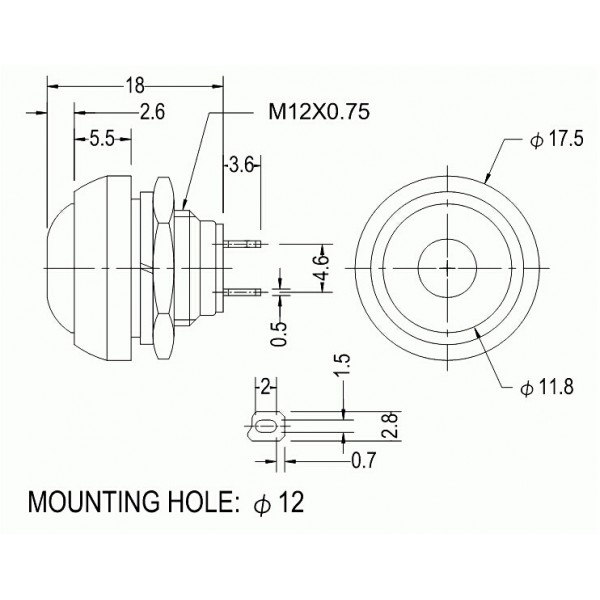

Dimension X [mm]	18
Dimension Y [mm]	18
Dimension Z [mm]	18
Material	Plastic (unknown material)
Mounting options	Screw thread
Maximum mounting thickness [mm]	3.0
Recommended mounting dimensions [mm]	ø12
Thread size	M12x0.75
Thread length [mm]	6.0
Form factor	Individual component
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	1
Number of poles per channel	1
Number of fixed (on-off) positions per channel	1
Number of spring-back (reset) positions per channel	1
Contact(s)	NO (normally open)
Maximum switching voltage [V AC]	250
Maximum switching current per channel (resistive load) [A]	3 (<125V) 1A (@250V)
Connectors
Switch connector(s)	Wire solder pin(s)/pad(s) Disconnect male 2.8x0.5mm
Package contents
Package contents	1x Nut 1x Retaining ring 1x Push button
