Name: Tactile Pushbutton Switch Set with Keycaps - 5x - Black - 5X-TACT12X12X7.3MM-KEYCAP-SET
SKU: 005641
Price: 3 EUR
Availability: InStock
Rating: 4 (2 reviews)

Tactile Pushbutton Switch Set with Keycaps - 5x - Black

Availability: Directly available from warehouse in Eindhoven
SKU: 005641

Based on 2 review(s) - Write a review

€3.00

Ex Tax: €2.48

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

Description
Reviews (2)

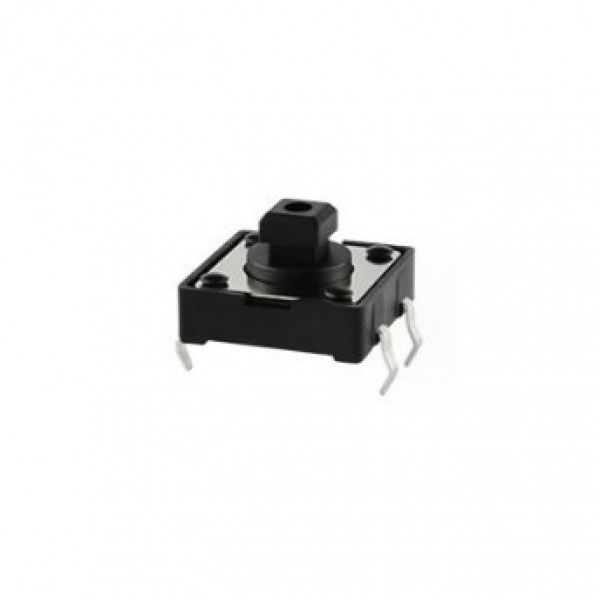

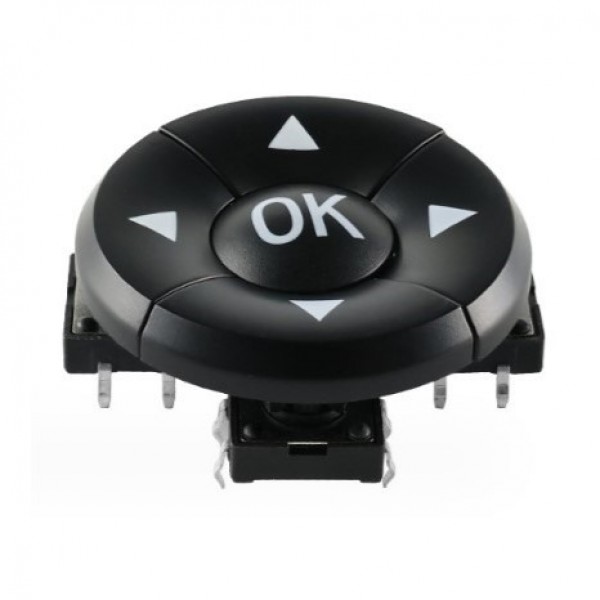

A set of 5 tactile momentary pushbuttons and 5 keycaps, 4x arrows and 1x OK, for example like on a TV remote. The keycaps click onto the buttons. The buttons are a standard 12x12x7.3mm 4-pin variant.

Please login or register to review

Reviews Over Tactile Pushbutton Switch Set with Keycaps - 5x - Black

Average Rating:

This product has 2 review(s) in total.

Tags: Manual Switches , PCB Switches , Tactile Pushbutton Switch Set with Keycaps - 5x - Black , 005641 , No brand

Specifications

General
Brand	No brand
General physical appearance
Main color	Black
Weight [g]	7 (complete set)

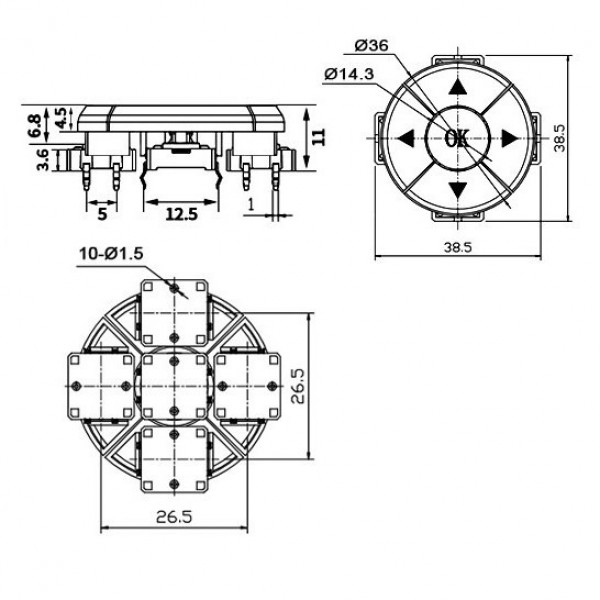

Dimension X [mm]	39 (assembled set)
Dimension Y [mm]	39 (assembled set)
Dimension Z [mm]	11 (assembled set)
Mounting options	THT
Form factor	Set/kit Individual component
Knob fitting	Click 3.8x3.8mm
Experiment PCB friendly	No (left and right buttons must be mounted on a 1/2 pin distance)
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	5
Number of poles per channel	1
Number of fixed (on-off) positions per channel	1
Number of spring-back (reset) positions per channel	1
Contact(s)	NO (normally open)
Lifespan	1000000
Maximum switching voltage [V DC]	12
Maximum switching current per channel (resistive load) [A]	0.05
Connectors
Switch connector(s)	Solder pin(s) (THT)
Pin distance [mm]	5.00
Pin row distance [mm]	12.5
Package contents
Package contents	5x Pushbutton 4x Arrow keycap 1x Ok keycap
