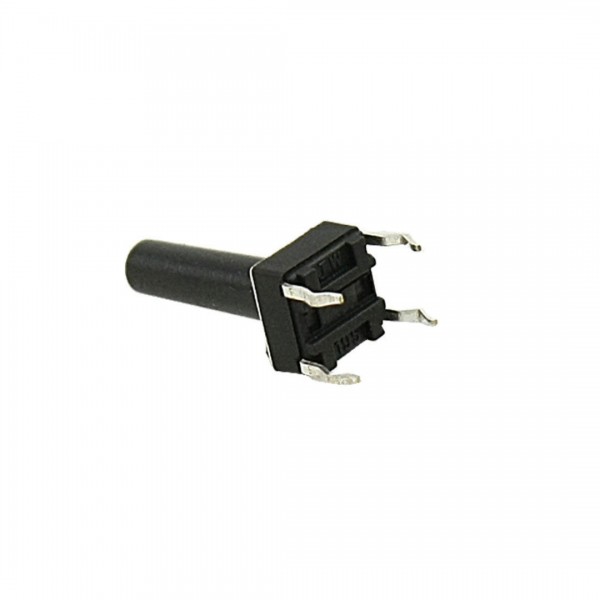

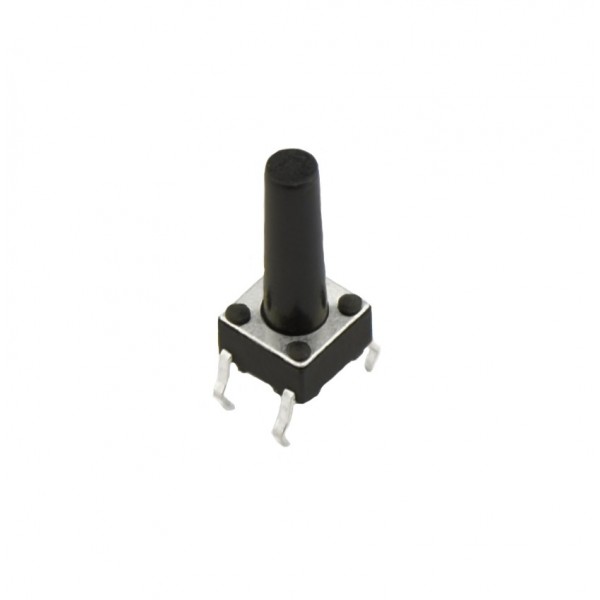

Tactile Pushbutton Switch Momentary 4pin 6*6*15mm

Based on 0 review(s) - Write a review

€0.20

Ex Tax: €0.17

20 or more €0.18

50 or more €0.16

100 or more €0.15

200 or more €0.14

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

This standard button is enough for many applications.

Please login or register to review

This product has 0 review(s) in total.

Tags: Tactile Pushbutton Switch Momentary 4pin 6*6*15mm , TACT15MM , PCB Switches

General
Brand	No brand
Minimum operating temperature [°C]	-30
Maximum operating temperature [°C]	85
General physical appearance
Main color	Black
Weight [g]	1
Dimension X [mm]	6
Dimension Y [mm]	6
Dimension Z [mm]	15 (total height excluding pins)
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	Yes (pins may bend a little)
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	1
Number of poles per channel	1
Number of fixed (on-off) positions per channel	1
Number of spring-back (reset) positions per channel	1
Contact(s)	NO (normally open)
Maximum switching voltage [V DC]	12
Maximum switching current per channel (resistive load) [A]	0.05
Connectors
Power supply connector(s)	Solder pin(s) (THT)
Switch connector(s)	Solder pin(s) (THT)
Pin distance [mm]	4.5
Pin row distance [mm]	6.5
Pin length (PCB/short side) [mm]	3.5
Package contents
Package contents	1x Tactile Switch
