Tactile Pushbutton Switch 4 Pin - With Red Orange Lighting

Based on 0 review(s) - Write a review

€0.60

Ex Tax: €0.50

Qty

Add to Cart

Add to wishlist

200+ pieces in stock

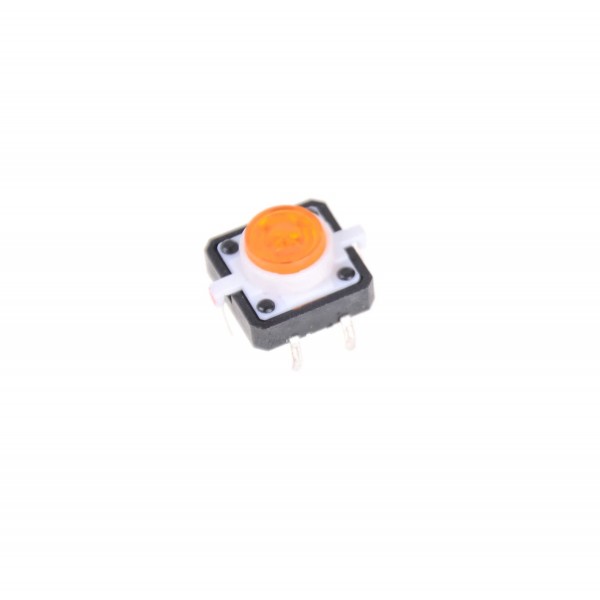

A tactile push button switch with a built-in orange LED.

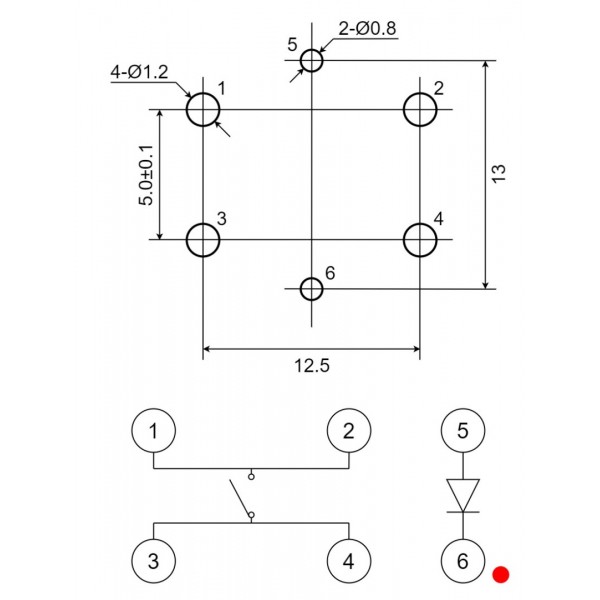

Pinout LED:

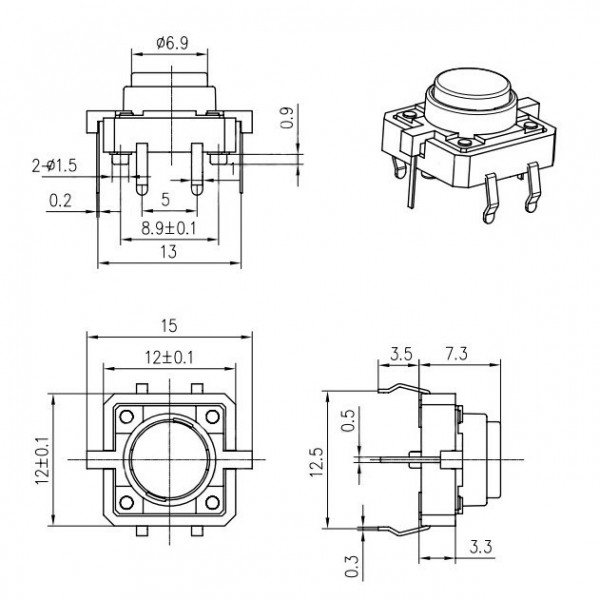

See the images for more information about the dimensions.

Please login or register to review

This product has 0 review(s) in total.

Tags: Tactile Pushbutton Switch 4 Pin - With Red Orange Lighting , LS12x12ORANGE , PCB Switches

General
Brand	No brand
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	70
Features	LED
General physical appearance
Main color	Orange
Weight [g]	1
Dimension X [mm]	15
Dimension Y [mm]	12
Dimension Z [mm]	7.3
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	No
LED
LED color	Orange
Diode
Type	LED
Forward voltage [V DC]	1.8
Maximum continuous forward current [mA]	20
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	1
Number of poles per channel	1
Number of fixed (on-off) positions per channel	1
Number of spring-back (reset) positions per channel	1
Contact(s)	NO (normally open)
Maximum switching voltage [V DC]	12
Maximum switching current per channel (resistive load) [A]	0.05
Connectors
Power supply connector(s)	Solder pin(s) (THT)
Switch connector(s)	Solder pin(s) (THT)
Pin length (PCB/short side) [mm]	3.5
Package contents
Package contents	1x Push button with LED
