Tactile Pushbutton Switch 4 Pin - With Red LED Lighting
- Availability: Directly available from warehouse in Eindhoven
- SKU: 001997
€0.60
Ex Tax: €0.50
Your shopping cart is empty!
A tactile push button switch with a built-in red LED.

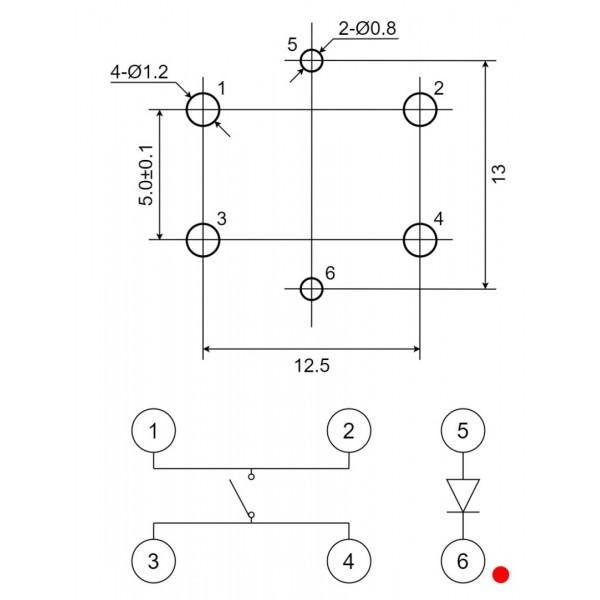

Pinout LED:
See the images for more information about the dimensions.
This product has 0 review(s) in total.
| General | |
| Brand | No brand |
| Minimum operating temperature [°C] | -25 |
| Maximum operating temperature [°C] | 70 |
| Features | LED |
| General physical appearance | |
| Main color | Red |
| Weight [g] | 1 |
| Dimension X [mm] | 15 |
| Dimension Y [mm] | 12 |
| Dimension Z [mm] | 7.3 |
| Mounting options | THT |
| Form factor | Individual component |
| Experiment PCB friendly | No |
| Light source | |
| Type | LED |
| Light color | Red |
| Diode | |
| Type | LED |
| Forward voltage [V DC] | 1.8 |
| Maximum continuous forward current [mA] | 20 |
| Switch | |
| Switching method | Physical (current/power switch) |
| Switch type | Push |
| Number of channels/gangs | 1 |
| Number of poles per channel | 1 |
| Number of fixed (on-off) positions per channel | 1 |
| Number of spring-back (reset) positions per channel | 1 |
| Contact(s) | NO (normally open) |
| Maximum switching voltage [V DC] | 12 |
| Maximum switching current per channel (resistive load) [A] | 0.05 |
| Connectors | |
| Power supply connector(s) | Solder pin(s) (THT) |
| Switch connector(s) | Solder pin(s) (THT) |
| Pin length (PCB/short side) [mm] | 3.5 |
| Package contents | |
| Package contents | 1x Push button with LED |
