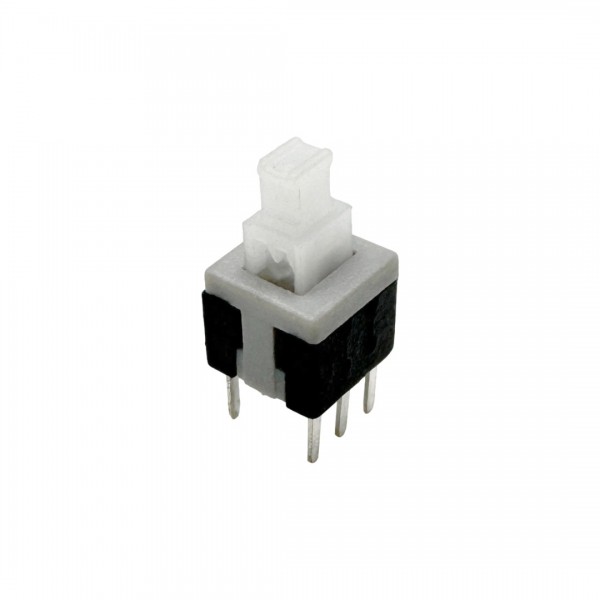

PCB Switch 5.8x5.8mm - Reset

Based on 0 review(s) - Write a review

€0.20

Ex Tax: €0.17

Qty

Add to Cart

Add to wishlist

100+ pieces in stock

A small reset switch on the PCB.

Please login or register to review

This product has 0 review(s) in total.

Tags: PCB Switch 5.8x5.8mm - Reset , SWITCH6P5.8MMRST , PCB Switches

General
Brand	No brand
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	70
General physical appearance
Main color	Black
Weight [g]	1
Dimension X [mm]	5.8
Dimension Y [mm]	5.8
Mounting options	THT
Form factor	Individual component
Knob fitting	2x2.5mm
Experiment PCB friendly	No
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	1
Number of poles per channel	2
Number of fixed (on-off) positions per channel	1
Number of spring-back (reset) positions per channel	1
Contact(s)	NC (normally closed) NO (normally open)
Lifespan	100000
Maximum switching voltage [V AC]	60 (max 0.3A)
Maximum switch resistance [Ω]	0.02
Maximum switching current per channel (resistive load) [A]	1.5 (@25V AC) 0.3 (@60V AC)
Connectors
Connector type(s)	Solder pin(s) (THT)
Pin distance [mm]	2.00
Pin row distance [mm]	4.5
Package contents
Package contents	1x Push button
