Micro Switch with Lever - Rounded

Based on 0 review(s) - Write a review

€0.40

Ex Tax: €0.33

10 or more €0.35

20 or more €0.30

50 or more €0.28

Qty

Add to Cart

Add to wishlist

1000+ pieces in stock

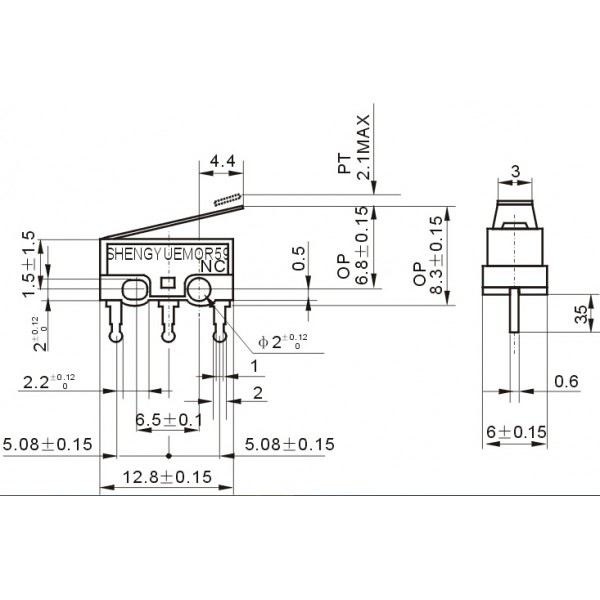

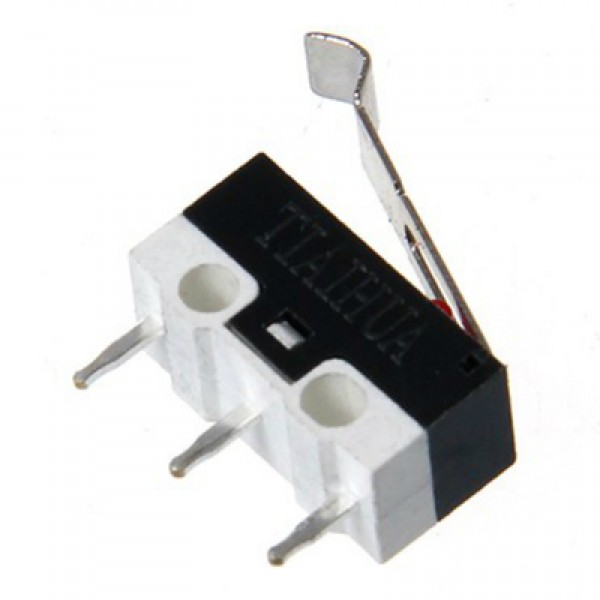

See images for information. The lever from the image is different, the rest of the measures are similar.

Please login or register to review

This product has 0 review(s) in total.

Tags: Micro Switch with Lever - Rounded , MICROSWITCHLEVER-ROUND , Micro Switches

General
Brand	No brand
Manufacturer model/SKU	JL014
Minimum operating temperature [°C]	-25
Maximum operating temperature [°C]	85
General physical appearance
Main color	Black
Weight [g]	1
Dimension X [mm]	13
Dimension Y [mm]	6.5
Dimension Z [mm]	5.8
Mounting options	THT
Form factor	Individual component
Experiment PCB friendly	Yes
Switch
Switching method	Physical (current/power switch)
Switch type	Push
Number of channels/gangs	1
Number of poles per channel	1
Number of fixed (on-off) positions per channel	1
Number of spring-back (reset) positions per channel	1
Contact(s)	NC (normally closed) NO (normally open)
Maximum switching voltage [V AC]	125
Maximum switching voltage [V DC]	36
Maximum switching current per channel (resistive load) [A]	1
Connectors
Switch connector(s)	Solder pin(s) (THT)
Pin distance [mm]	5.08
Package contents
Package contents	1x Lever switch
