M5Stack Joystick2 Unit

M5Stack Joystick2 Unit
M5Stack Joystick2 Unit
M5Stack Joystick2 Unit
M5Stack Joystick2 Unit
M5Stack Joystick2 Unit
M5Stack Joystick2 Unit
M5Stack Joystick2 Unit
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 006581
Based on 0 review(s) - Write a review
€6.50
Ex Tax: €5.37
10 or more €6.25
20 or more €6.00
50 or more €5.90
100 or more €5.80
Add to Cart
Add to wishlist

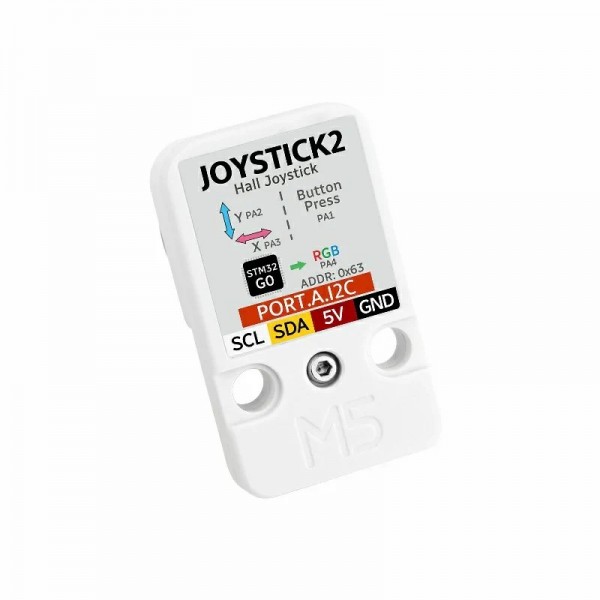

A module from M5Stack with a joystick and an RGB LED.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Joystick2 Unit

This product has 0 review(s) in total.

Tags: M5Stack , Unit , M5Stack Joystick2 Unit , 006581 , M5Stack , U024-V2 , Enclosure , Joystick , I2C

Specifications

General
Brand M5Stack
Manufacturer model/SKU U024-V2
Features Joystick
Enclosure
General physical appearance
Main color White
Weight [g] 10
Dimension X [mm] 40
Dimension Y [mm] 24
Dimension Z [mm] 24
Mounting options LEGO (compatible) holes
Form factor M5Stack Unit
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Default I2C address 0x63
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] 10
Joystick
Joystick technology Hall effect
Switch
Switching method Physical (sensor switch)
Switch type Push
Number of channels/gangs 1
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Enclosure
Material Polycarbonate (PC)
Package contents
Package contents 1x JoyStick2 Unit
1x Grove female cable
