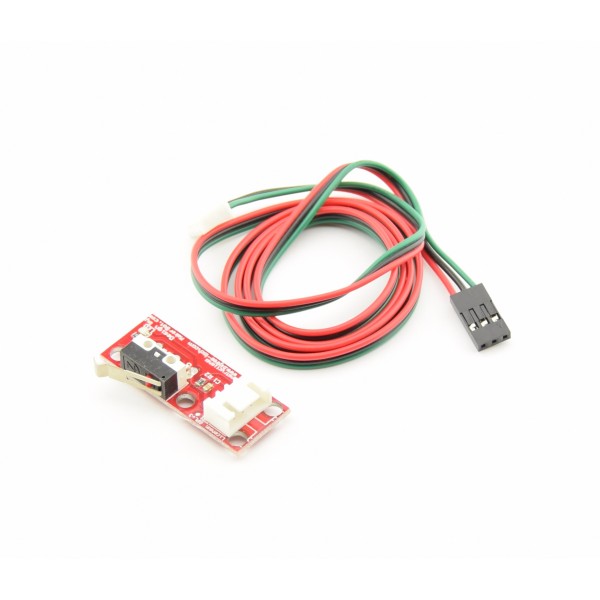

Endstop module - RAMPS 1.4

This module has a standard microswitch to detect a certain object (often used in 3D printers and CNC machines)

Specifications:

• LED present (lights up when the microswitch is pressed)
• The "OUT" pin is  low  if the microswitch is pressed
• Pull-up resistor present (can be connected directly)
• Two 3mm holes for mounting
• RAMPS 1.4 compatible
• Cable of approx. 60cm included

Pin description:

• Red: Vcc  (RAMPS +)
• Black: Gnd (RAMPS -)
• Green: Signal (RAMPS S)
