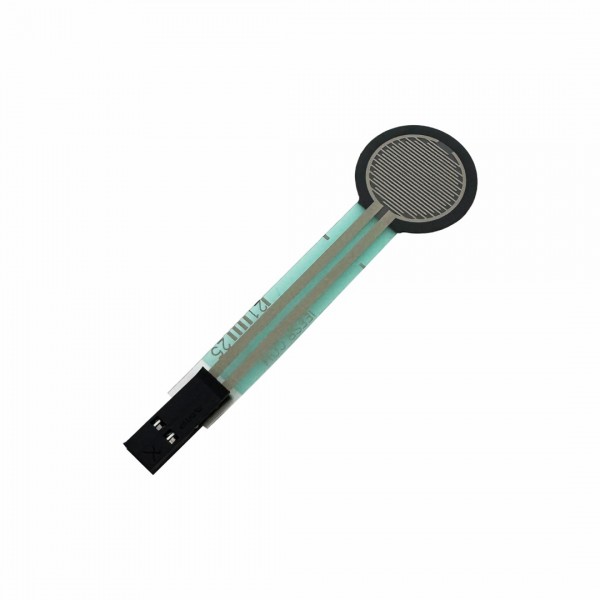

Name: Interlink Electronics FSR 402 Membrane Pressure sensor - 18mm Round - Female Pin Headers - 34-00001
SKU: 006742
Price: 5.5 EUR
Availability: InStock

Interlink Electronics FSR 402 Membrane Pressure sensor - 18mm Round - Female Pin Headers

Availability: Directly available from warehouse in Eindhoven
SKU: 006742

Based on 0 review(s) - Write a review

€5.50

Ex Tax: €4.55

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

This sensor is able to measure pressure using the membranes that are incorporated in the sensor. The resistance of the sensor changes based on the pressure on the membrane. You can easily read the sensor on an analog input pin of a microcontroller with a simple voltage divider.

See the following page to get the sensor working with Arduino: How to use a Force Sensitive Resistor - Arduino Tutorial.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Interlink Electronics FSR 402 Membrane Pressure sensor - 18mm Round - Female Pin Headers

Average Rating:

This product has 0 review(s) in total.

Datasheet: 006742_Datasheet_FSR.pdf

Tags: Interlink Electronics FSR 402 Membrane Pressure sensor - 18mm Round - Female Pin Headers , 34-00001 , Membrane

Specifications

General
Brand	Interlink Electronics
Manufacturer model/SKU	34-00001
Norm conformity	RoHS
Minimum operating temperature [°C]	-40 (see datasheet for resistance change)
Maximum operating temperature [°C]	85 (see datasheet for resistance change)
Features	Weight sensor
General physical appearance
Main color	Black
Weight [g]	1
Dimension X [mm]	56
Dimension Y [mm]	18
Dimension Z [mm]	0.5
Form factor	Individual component
Communication
Hardware interface(s)	Analog
Weight sensor
Type	Pressure sensor
Minimum measuring range [kg]	0.02 (0.2N)
Maximum measuring range [kg]	2 (20N)
Connectors
IO-connector(s)	Pin header female (2.54mm)
Package contents
Package contents	1x FSR Pressure Sensor
