Mavin Load Cell - S Type - 50kg

Availability: Directly available from warehouse in Eindhoven
SKU: 004722

Based on 0 review(s) - Write a review

€37.75

Ex Tax: €31.20

Qty

Add to Cart

Add to wishlist

50+ pieces in stock

Description
Reviews

With this load cell mass can be measured. The S shape makes it well suited for crane scales, for example.

Pinout wires:

Red: + Excitation
White: - Signal
Black: - Excitation
Green: + Signal
Transparent: Shielding

Note: The signals from this load cell can not be read directly with a microcontroller. This requires an additional signal amplifier: Load Cell Amplifier - HX711

See the following page for more information: Manufacturer page

Please login or register to review

Reviews Over Mavin Load Cell - S Type - 50kg

Average Rating:

This product has 0 review(s) in total.

Tags: Mavin Load Cell - S Type - 50kg , MV-NS1-50KG , Load Cells

Specifications

General
Brand	Mavin
Manufacturer model/SKU	NS1-50KG
Minimum operating temperature [°C]	-20
Maximum operating temperature [°C]	60
Features	Weight sensor
General physical appearance
Main color	Gray/silver
Weight [g]	500

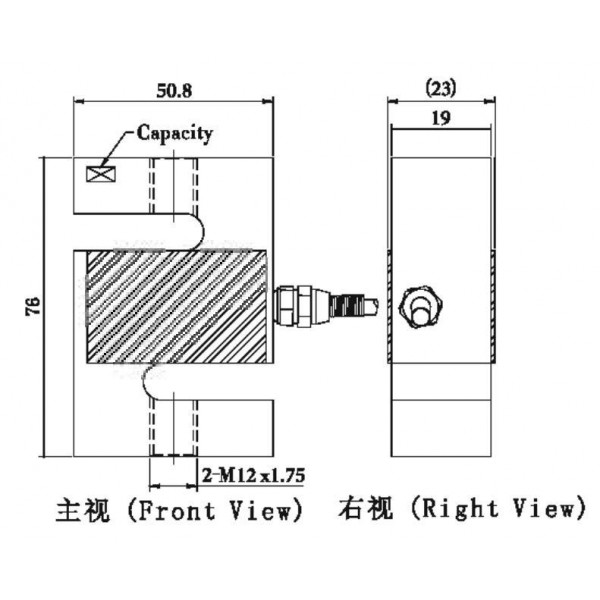

Dimension X [mm]	76
Dimension Y [mm]	51
Dimension Z [mm]	23
Water and dust protection	IP67
Mounting options	Screw thread
Thread size	M12x1.75
Thread length [mm]	16
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	5
Maximum supply voltage [V DC]	12
IO-pin output voltage [V]	Equal to supply voltage (divided by 2)
Communication
Hardware interface(s)	Analog
Weight sensor
Type	Load cell
Minimum measuring range [kg]	0
Maximum measuring range [kg]	50
Maximum weight (safe overload) [%]	150
Output sensitivity [mV/V]	2.0
Input impedance [Ω]	390
Output impedance [Ω]	350
Connectors
Power supply connector(s)	Loose wire
IO-connector(s)	Loose wire
Wire/cable
Wire/cable length [m]	3
Package contents
Package contents	1x Load cell
