Name: Mavin Load Cell - DNA2-200kg - RS485 - MV-DNA2-200KG
SKU: 006695
Price: 39 EUR
Availability: InStock

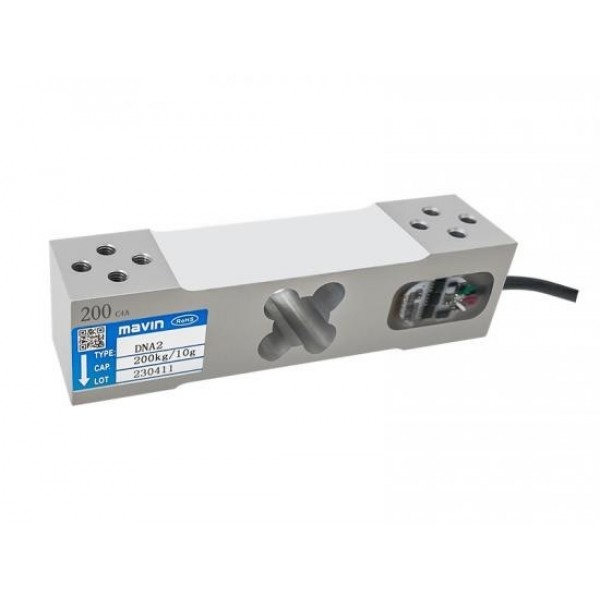

Mavin Load Cell - DNA2-200kg - RS485

Based on 0 review(s) - Write a review

€39.00

Ex Tax: €32.23

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

This load cell can be used to measure weight. This version has a built-in load cell amplifier and can be read out digitally via RS485.

See the following page for more information: GitHub

See the following page for more information: Manufacturer page

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Mavin Load Cell - DNA2-200kg - RS485 , MV-DNA2-200KG , Load Cells

General
Brand	Mavin
Manufacturer model/SKU	DNA2-200KG
Minimum operating temperature [°C]	-10
Maximum operating temperature [°C]	40
Features	Load cell amplifier Weight sensor

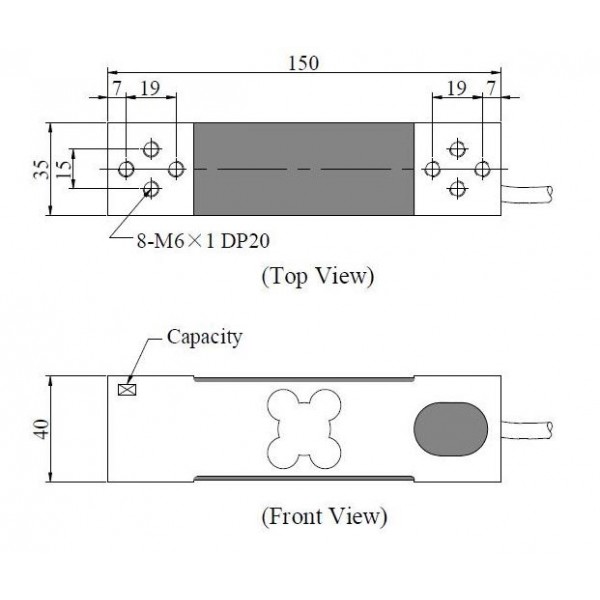

General physical appearance
Main color	Gray/silver
Weight [g]	525
Dimension X [mm]	150
Dimension Y [mm]	40
Dimension Z [mm]	35
Water and dust protection	IP65
Mounting options	Screw thread
Thread size	M6
Thread length [mm]	20
Form factor	Individual component
General electrical properties
Minimum supply voltage [V DC]	6
Maximum supply voltage [V DC]	12
Communication
Hardware interface(s)	RS485
Isolated communication	No
Default baudrate	19200
Weight sensor
Type	Load cell
Minimum measuring range [kg]	0
Maximum measuring range [kg]	200
Maximum weight (safe overload) [%]	150
Connectors
Power supply connector(s)	Loose wire
IO-connector(s)	Loose wire
Wire/cable
Wire/cable length [m]	1.5
Pinout
Power supply pin	Red wire
Ground/min	Black wire
RS485-A	Green wire
RS485-B	White wire
Package contents
Package contents	1x Load cell
