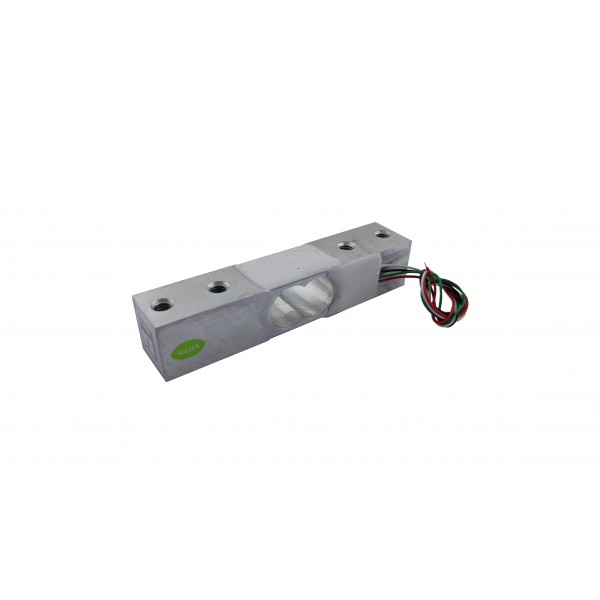

Mavin Load Cell - 20kg

Mavin Load Cell - 20kg
Mavin Load Cell - 20kg
Mavin Load Cell - 20kg
Mavin Load Cell - 20kg
Mavin Load Cell - 20kg
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 003229
Based on 0 review(s) - Write a review
€8.00
Ex Tax: €6.61
10 or more €7.80
20 or more €7.60
50 or more €7.50
100 or more €7.40
Add to Cart
Add to wishlist

With this load cell weight can be measured.

Specifications:

  • Weight range: 0-20kg
  • Recommended input voltage: 5-12V

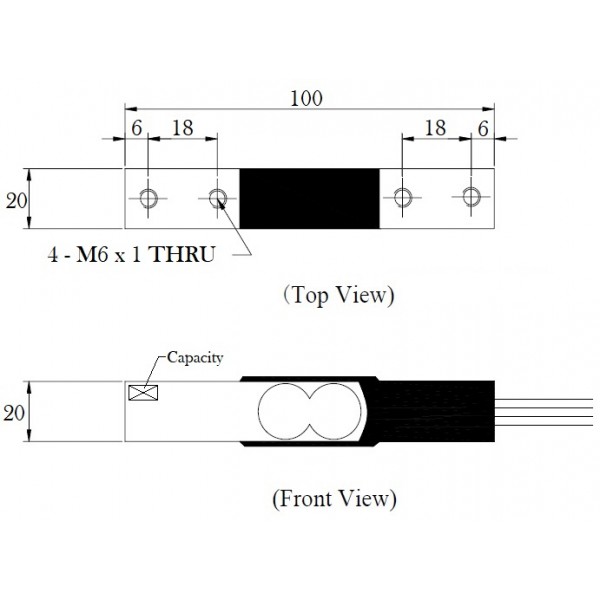

  • Dimensions: See images

Pinout wires:

  • Red: + Power
  • White: - Signal
  • Black: - Power
  • Green: + Signal

Note: The signals from this load cell cannot be read with an Arduino. This requires an additional signal amplifier, namely the Load Cell Amplifier - HX711.

Please login or register to review

Reviews Over Mavin Load Cell - 20kg

This product has 0 review(s) in total.

Tags: Mavin Load Cell - 20kg , MV-NA26-20KG , Load Cells
