M5Stack Scales Unit - 20kg
- Availability: Directly available from warehouse in Eindhoven
- SKU: 005180
€89.75
Ex Tax: €74.17
Your shopping cart is empty!

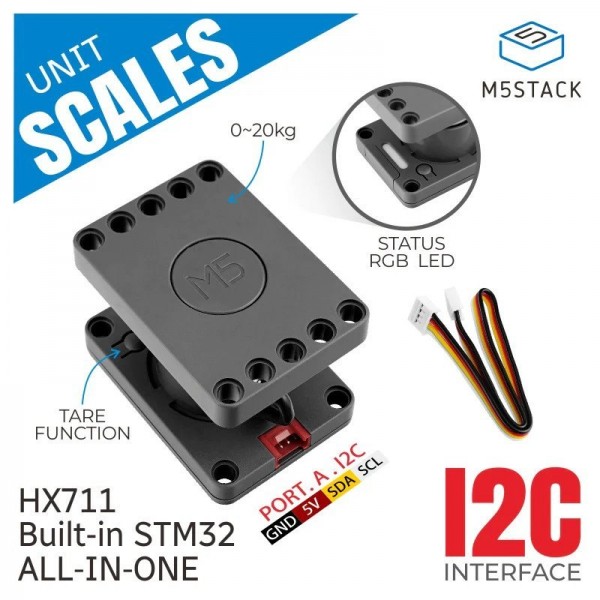

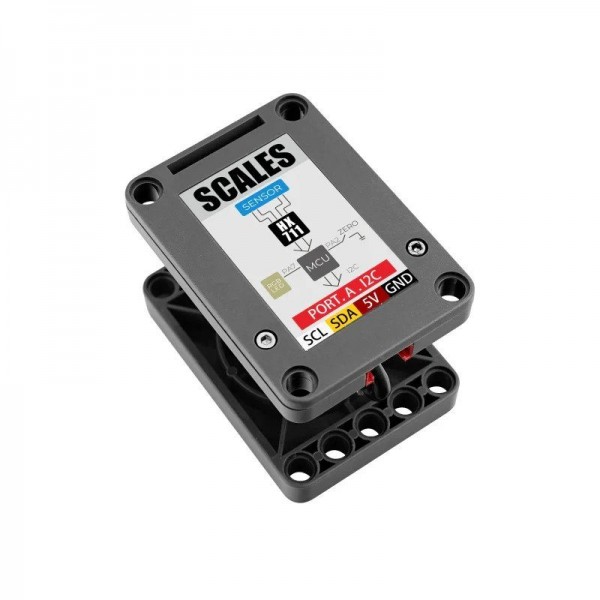

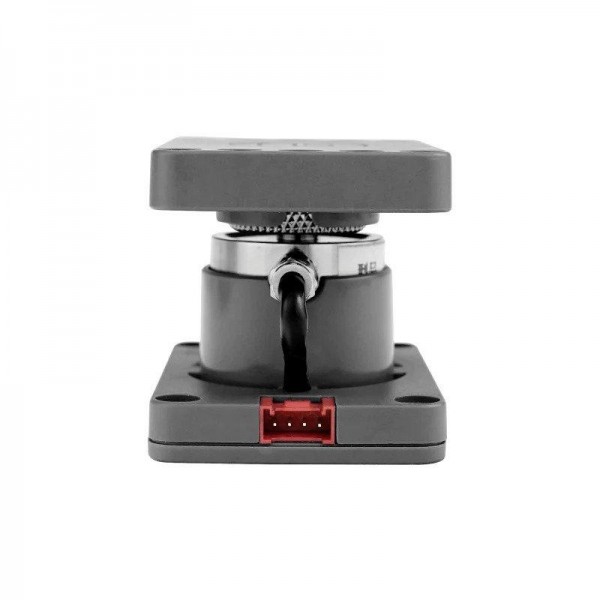

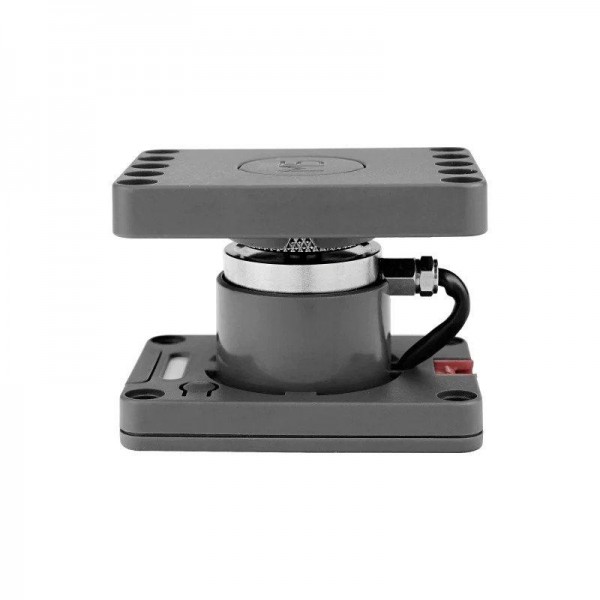

This scale from M5Stack has an accurate load cell with a weighing range of up to 20kg.
See the following page for more information: Wiki
| General | |
| Brand | M5Stack |
| Manufacturer model/SKU | U108 |
| Features | Enclosure Weight sensor Digital LED(s) |
| General physical appearance | |
| Main color | Gray/silver |
| Weight [g] | 87 |
| Dimension X [mm] | 56 |
| Dimension Y [mm] | 41 |
| Dimension Z [mm] | 40 |
| Mounting options | LEGO (compatible) holes |
| Form factor | M5Stack Module Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Communication | |
| Hardware interface(s) | I2C |
| Default I2C address | 0x26 |
| Adjustable I2C address | Yes |
| Built-in pull-up resistor(s) [kΩ] | 4.7 |
| Weight sensor | |
| Type | Load cell |
| Minimum measuring range [kg] | 0 |
| Maximum measuring range [kg] | 20 |
| Connectors | |
| Power supply connector(s) | HY2.0 (Grove) male |
| IO-connector(s) | HY2.0 (Grove) male |
| Enclosure | |
| Material | Polycarbonate (PC) |
| Package contents | |
| Package contents | 1x Scales Unit 1x Grove female cable |
