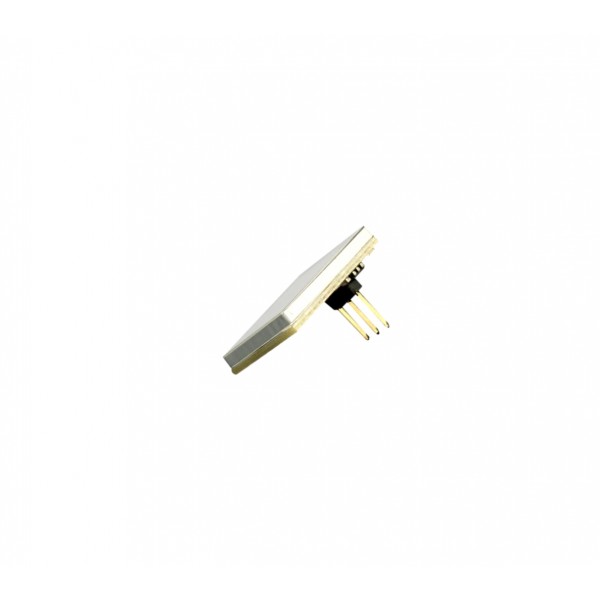

Touch Module 1-channel - Red
- Availability: Directly available from warehouse in Eindhoven
- SKU: 000590
€3.00
Ex Tax: €2.48
Your shopping cart is empty!
A small touch area that glows red when you press it with your finger and can pass a signal (touch works capacitively).
| General | |
| Brand | No brand |
| Minimum operating temperature [°C] | -30 |
| Maximum operating temperature [°C] | 70 |
| Features | LED Touch sensor |
| General physical appearance | |
| Main color | White |
| Weight [g] | 2 |
| Dimension X [mm] | 20 |
| Dimension Y [mm] | 17 |

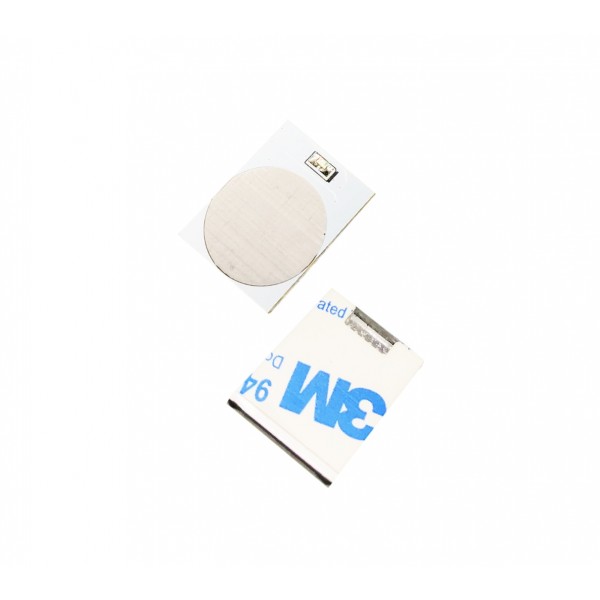

| Mounting options | Pin headers Adhesive layer |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 2.7 |
| Maximum supply voltage [V DC] | 6 |
| IO-pin output voltage [V] | Equal to supply voltage |
| Communication | |
| Hardware interface(s) | Digital |
| Light source | |
| Type | LED |
| Light color | Red |
| Touch sensor | |
| Sensor (chip) | TTP223B |
| Number of channels | 1 |
| Switch | |
| Switching method | Physical (sensor switch) |
| Switch type | Touch |
| Number of channels/gangs | 1 |
| Number of poles per channel | 1 |
| Number of fixed (on-off) positions per channel | 2 |
| Number of spring-back (reset) positions per channel | 0 |
| Switching voltage equal to supply voltage | Yes |
| Maximum switching current per channel (resistive load) [A] | 0.5 (out pin) |
| Connectors | |

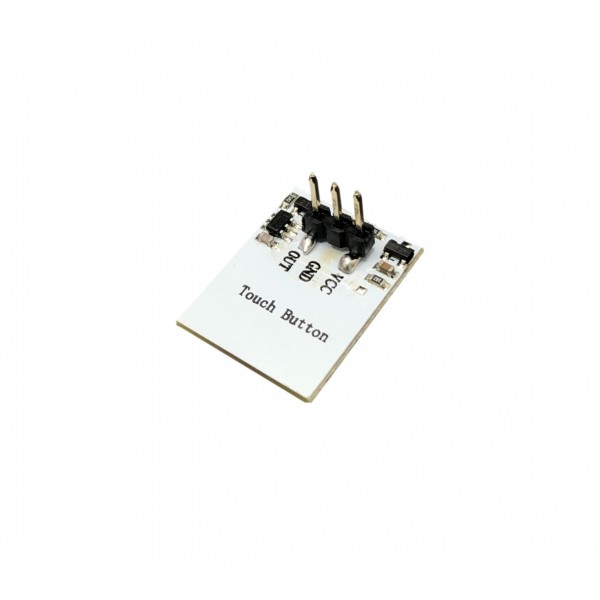

| Power supply connector(s) | Pin header male (2.54mm) |
| IO-connector(s) | Pin header male (2.54mm) |
| Package contents | |
| Package contents | 1x Sensor module |
