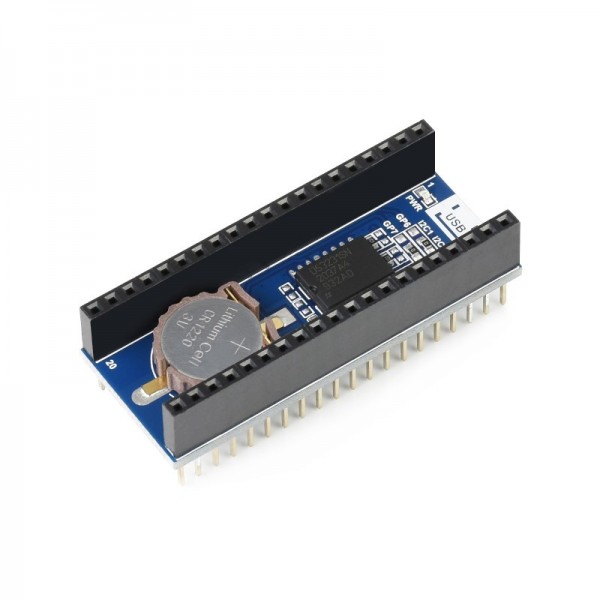

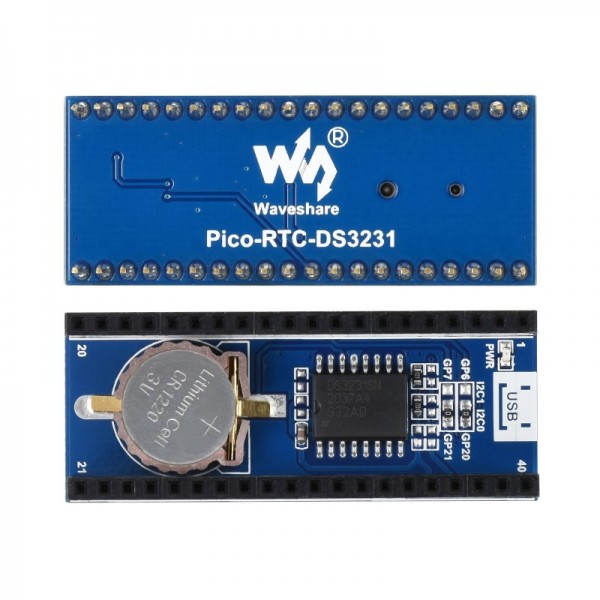

Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico

Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico
Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico
Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico
Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico
Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico
Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico
Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico
Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico
Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico
Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico
Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004856
Based on 0 review(s) - Write a review
€13.00
Ex Tax: €10.74
Add to Cart
Add to wishlist

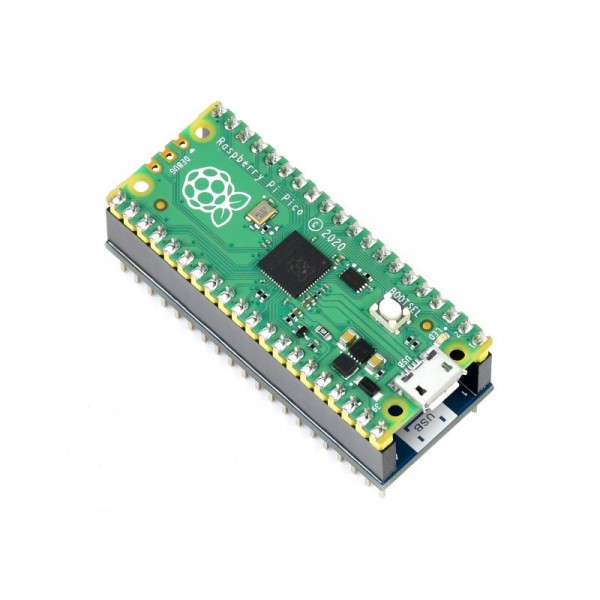

An RTC module that can be placed as a HAT on a Raspberry Pi Pico (or other microcontroller with the same form factor).

Note: No Raspberry Pi Pico is included.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico

This product has 0 review(s) in total.

Tags: Sensors , Time , Waveshare Precision RTC Module - DS3231- for Raspberry Pi Pico , 004856 , Waveshare , 19426 , Battery holder , RTC , Temperature sensor , I2C

Specifications

General
Brand Waveshare
Manufacturer model/SKU
Features RTC
Battery holder
Temperature sensor
General physical appearance
Main color Blue
Weight [g] 11

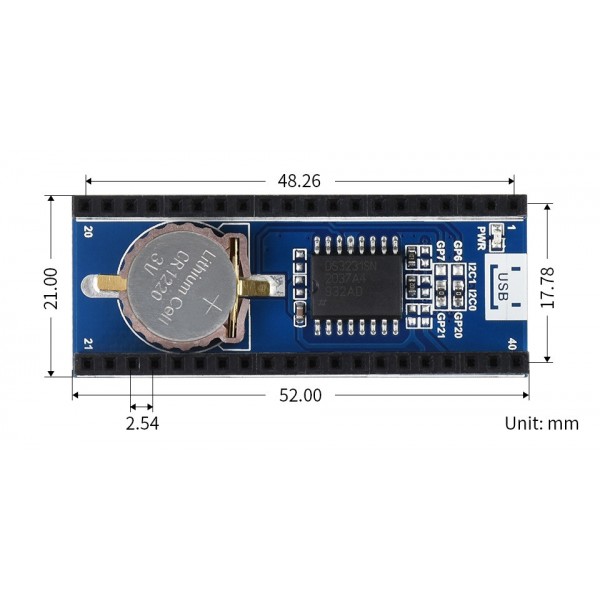

Dimension X [mm] 52
Dimension Y [mm] 21
Mounting options Pin headers
Form factor Module (general)
Raspberry Pi Pico layout/shield
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 3.3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication

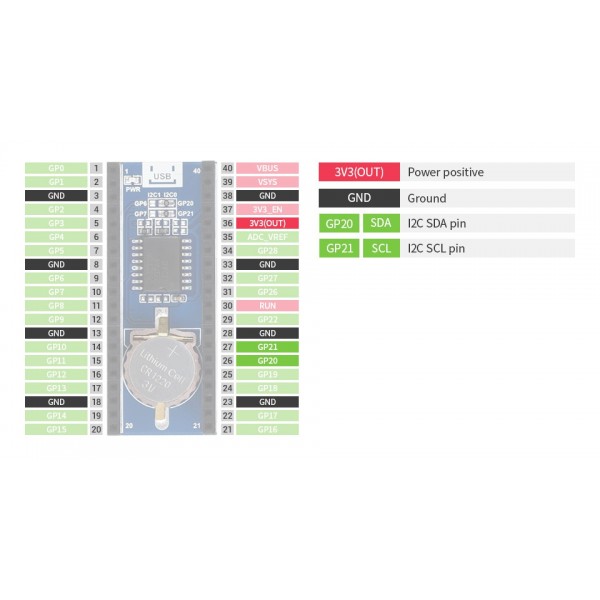

Hardware interface(s) I2C
Default I2C address 0x68
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] None
Temperature sensor
Sensor (chip) DS3231
Minimum measuring range [°C] -40
Maximum measuring range [°C] 85
Smallest resolution [°C] 0.25
Maximum resolution [bit] 10
Accuracy [±°C] 3.0
RTC
RTC chip DS3231
Back-up battery/capacitor Yes
Battery circuit
Supported battery chemistry Lithium
Battery holder
Suitable battery form factor Button cell 1220
Connectors
Power supply connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Pin header female (2.54mm)
Package contents
Package contents
