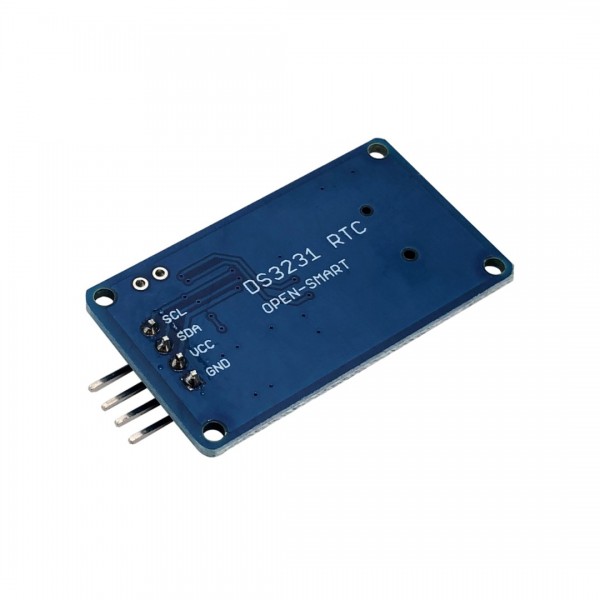

Open-Smart DS3231 RTC Module met EEPROM - I2C - incl. Battery

Open-Smart DS3231 RTC Module met EEPROM - I2C - incl. Battery
Open-Smart DS3231 RTC Module met EEPROM - I2C - incl. Battery
Open-Smart DS3231 RTC Module met EEPROM - I2C - incl. Battery
Open-Smart DS3231 RTC Module met EEPROM - I2C - incl. Battery
Open-Smart DS3231 RTC Module met EEPROM - I2C - incl. Battery
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005386
Based on 0 review(s) - Write a review
€4.00
Ex Tax: €3.31
10 or more €3.75
20 or more €3.60
50 or more €3.50
100 or more €3.40
Add to Cart
Add to wishlist

This RTC (Real Time Clock) module makes it very easy to keep track of time.

Note: As soon as the module is supplied with voltage, the chip activates and thus also the battery backup. From then on, the battery will last approximately one year (net, so with the module not being powered). If you do supply the module with power, the battery will of course last longer.

Please login or register to review

Reviews Over Open-Smart DS3231 RTC Module met EEPROM - I2C - incl. Battery

This product has 0 review(s) in total.

Tags: Sensors , Temperature , Open-Smart DS3231 RTC Module met EEPROM - I2C - incl. Battery , 005386 , Open-Smart , Battery holder , Temperature sensor , RTC , I2C

Specifications

General
Brand Open-Smart
Features RTC
Battery holder
Temperature sensor
General physical appearance
Main color Blue
Weight [g] 6
Dimension X [mm] 42
Dimension Y [mm] 24
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2.2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 2.3
Maximum supply voltage [V DC] 5.5
Minimum IO-pin input voltage [V] 2.3
Maximum IO-pin input voltage [V] 5.5
IO-pin output voltage [V] Equal to supply voltage
Internal memory
EEPROM [B] 256
EEPROM type Built-in
EEPROM chip 24C02
Communication
Hardware interface(s) I2C
Default I2C address 0x68
(DS3231)
0x57
(EEPROM)
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] 4.7
Temperature sensor
Sensor (chip) DS3231
Minimum measuring range [°C] -40
Maximum measuring range [°C] 85
Smallest resolution [°C] 0.25
Maximum resolution [bit] 10
Accuracy [±°C] 3.0
RTC
RTC chip DS3231
Back-up battery/capacitor Yes
Battery circuit
Supported battery chemistry Lithium
Battery holder
Suitable battery form factor Button cell 1220
Suitable number of batteries 1
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Package contents
Package contents 1x RTC Module
1x Battery
