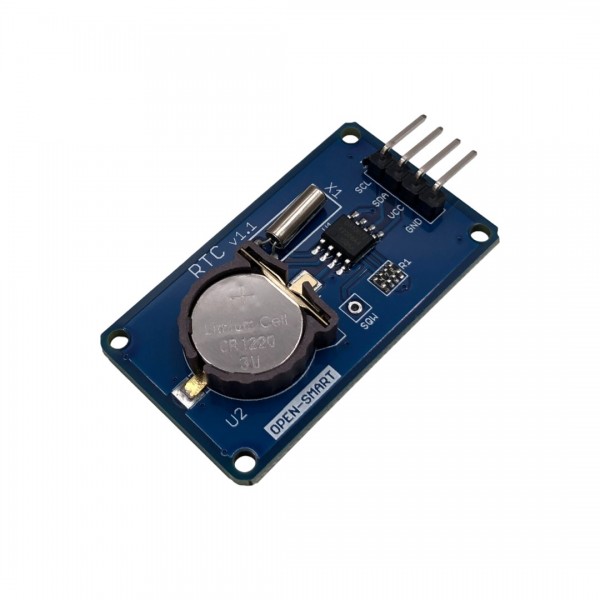

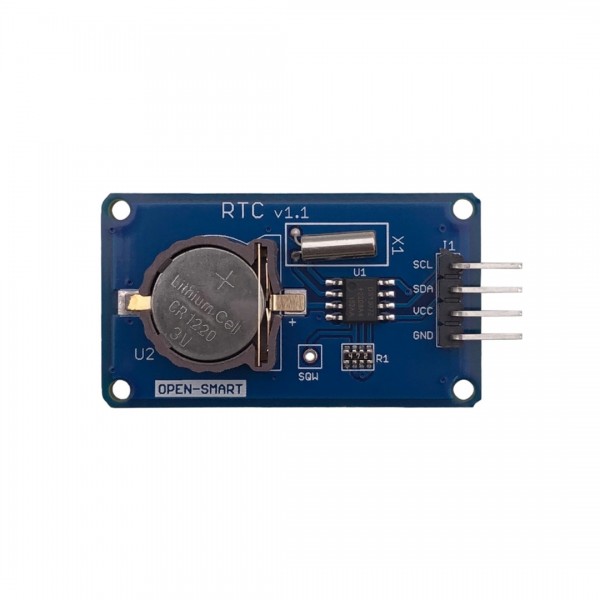

Open-Smart DS1307 RTC Module - I2C - incl. Battery

Open-Smart DS1307 RTC Module - I2C - incl. Battery
Open-Smart DS1307 RTC Module - I2C - incl. Battery
Open-Smart DS1307 RTC Module - I2C - incl. Battery
Open-Smart DS1307 RTC Module - I2C - incl. Battery
Open-Smart DS1307 RTC Module - I2C - incl. Battery
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005412
Based on 0 review(s) - Write a review
€2.50
Ex Tax: €2.07
Add to Cart
Add to wishlist

This RTC (Real Time Clock) module makes it very easy to keep track of time.

Please login or register to review

Reviews Over Open-Smart DS1307 RTC Module - I2C - incl. Battery

This product has 0 review(s) in total.

Tags: Sensors , Time , Open-Smart DS1307 RTC Module - I2C - incl. Battery , 005412 , Open-Smart , RTC , Battery holder , I2C

Specifications

General
Brand Open-Smart
Model revision
Features RTC
Battery holder
General physical appearance
Main color Blue
Weight [g] 6
Dimension X [mm] 42
Dimension Y [mm] 24
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2.2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 4.5
Maximum supply voltage [V DC] 5.5
Minimum IO-pin input voltage [V] 4.5
Maximum IO-pin input voltage [V] 5.5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) I2C
Default I2C address 0x68
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] 4.7
RTC
RTC chip DS1307
Back-up battery/capacitor Yes
Battery circuit
Supported battery chemistry Lithium
Battery holder
Suitable battery form factor Button cell 1220
Suitable number of batteries 1
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Package contents
Package contents
