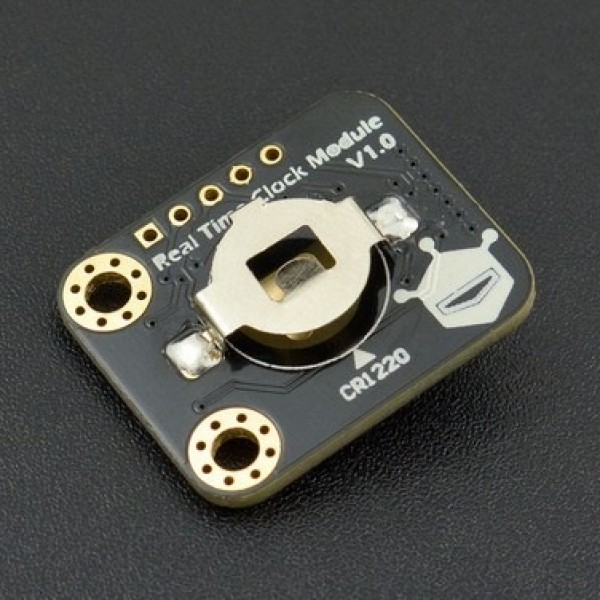

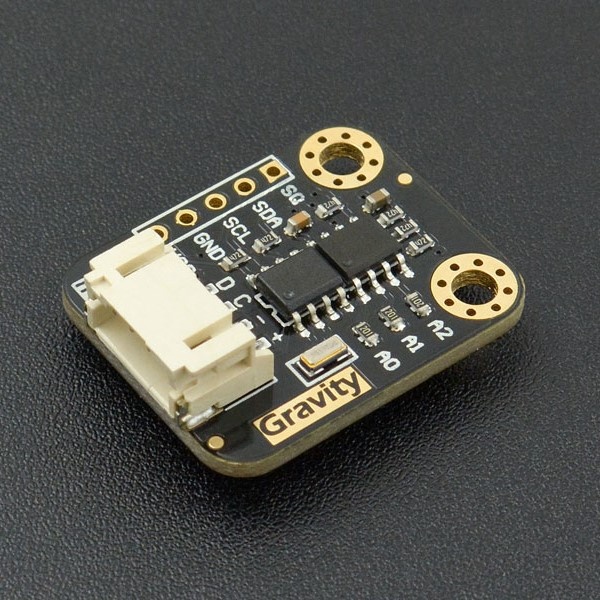

DFRobot Gravity I2C DS1307 RTC Module

DFRobot Gravity I2C DS1307 RTC Module
DFRobot Gravity I2C DS1307 RTC Module
DFRobot Gravity I2C DS1307 RTC Module
DFRobot Gravity I2C DS1307 RTC Module
DFRobot Gravity I2C DS1307 RTC Module
DFRobot Gravity I2C DS1307 RTC Module
DFRobot Gravity I2C DS1307 RTC Module
DFRobot Gravity I2C DS1307 RTC Module
DFRobot Gravity I2C DS1307 RTC Module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004044
Based on 0 review(s) - Write a review
€6.00
Ex Tax: €4.96
Add to Cart
Add to wishlist

With this RTC (Real Time Clock) module it is very easy to keep track of time. In addition, this module also has a built-in EEPROM to store data that is not lost when the power supply fails.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DFRobot Gravity I2C DS1307 RTC Module

This product has 0 review(s) in total.

Tags: Sensors , Time , DFRobot Gravity I2C DS1307 RTC Module , 004044 , DFRobot , DFR0151 , Battery holder , RTC , I2C

Specifications

General
Brand DFRobot
Manufacturer model/SKU
Model revision
Features RTC
Battery holder
General physical appearance
Main color Black
Weight [g] 6

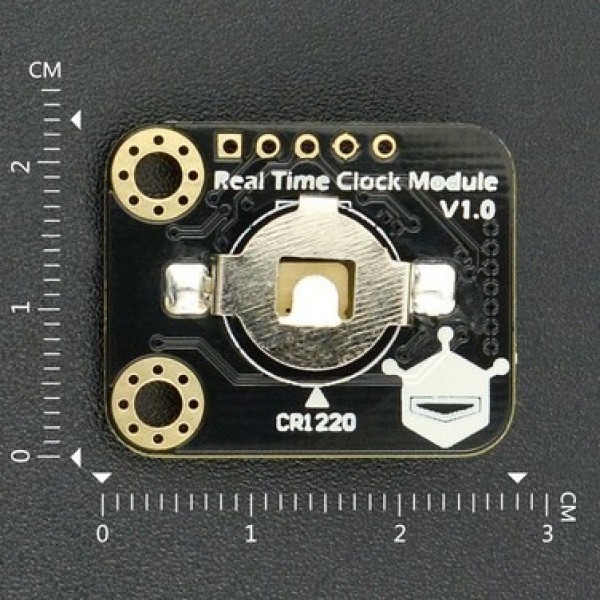

Dimension X [mm] 27
Dimension Y [mm] 2.1
Mounting options Mounting hole(s)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 5
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] 5
Internal memory
EEPROM [B] 4096
EEPROM type Built-in
Communication
Hardware interface(s) I2C
RTC
RTC chip DS1307
Back-up battery/capacitor Optional
Battery circuit
Supported battery chemistry Lithium
Battery holder
Suitable battery form factor Button cell 1220
Connectors
Power supply connector(s) JST-PH (compatible) male
Through hole solder pin(s) (2.54mm)
IO-connector(s) JST-PH (compatible) male
Through hole solder pin(s) (2.54mm)
Package contents
Package contents
