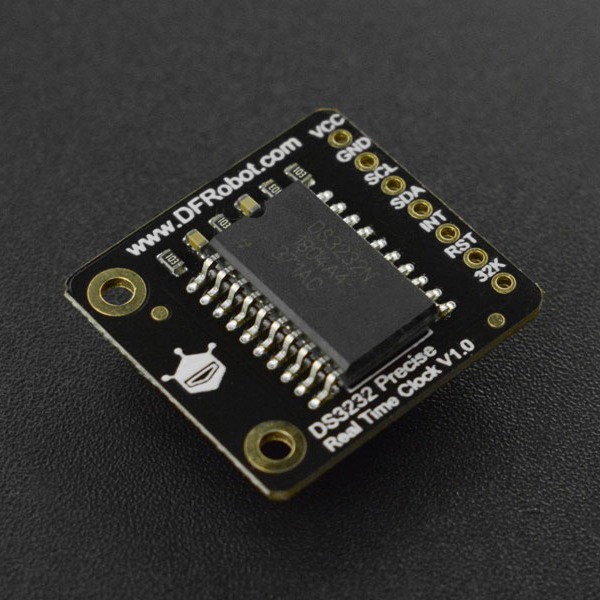

DFRobot Fermion DS3232 RTC Module - I2C

Availability: Directly available from warehouse in Eindhoven
SKU: 005095

Based on 0 review(s) - Write a review

€11.50

Ex Tax: €9.50

Qty

Add to Cart

Add to wishlist

10+ pieces in stock

Description
Reviews

This RTC (Real Time Clock) module makes it very easy to keep track of time. Due to temperature compensation, the RTC is very accurate. In addition, this module also has built-in SRAM to store data that will not be lost if an optional backup battery is installed.

Note: No backup battery is included, it is available separately: Button cell 1220

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Fermion DS3232 RTC Module - I2C

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Fermion DS3232 RTC Module - I2C , DFROBOT-DFR0821 , Time

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	DFR0821
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	85
Features	Battery holder Temperature sensor RTC
General physical appearance
Main color	Black
Weight [g]	3

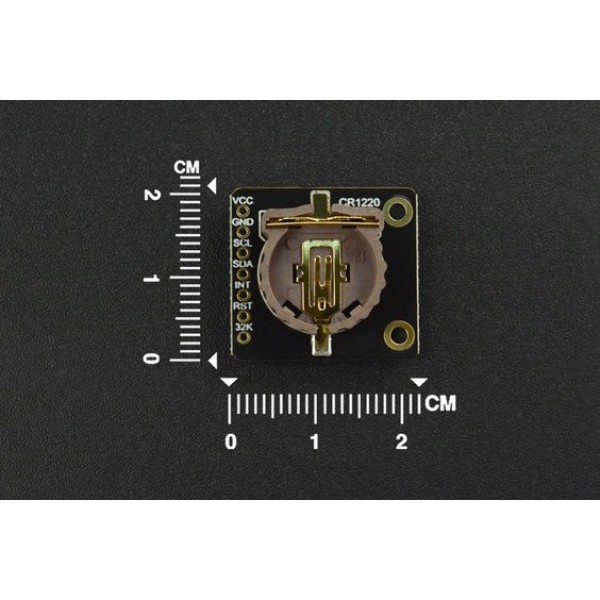

Dimension X [mm]	23
Dimension Y [mm]	21
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	2.3
Maximum supply voltage [V DC]	5.5
Minimum IO-pin input voltage [V]	2.3
Maximum IO-pin input voltage [V]	5.5
IO-pin output voltage [V]	Equal to supply voltage
Internal memory
SRAM [KB]	0.23
Communication
Hardware interface(s)	I2C
Default I2C address	0x68
Adjustable I2C address	Yes
Temperature sensor
Sensor (chip)	DS3232
Minimum measuring range [°C]	-40
Maximum measuring range [°C]	85
Smallest resolution [°C]	0.25
Maximum resolution [bit]	10
Accuracy [±°C]	3.0
RTC
RTC chip	DS3232
Back-up battery/capacitor	Optional
Battery circuit
Supported battery chemistry	Lithium

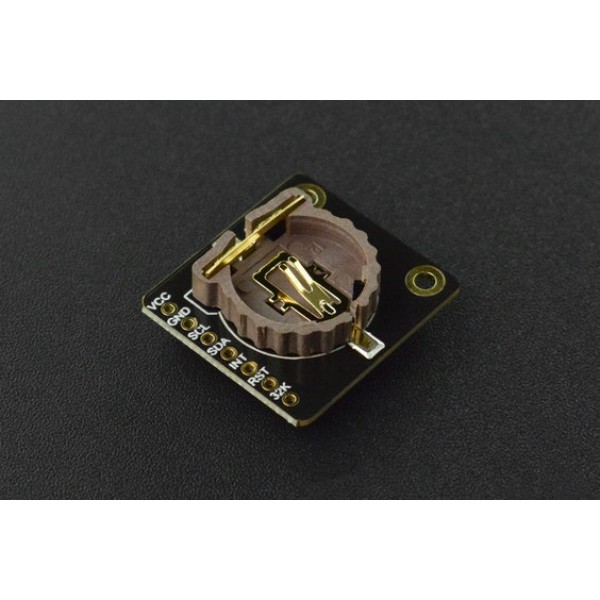

Battery holder
Suitable battery form factor	Button cell 1220
Suitable number of batteries	1
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm)
IO-connector(s)	Through hole solder pin(s) (2.54mm)
Package contents

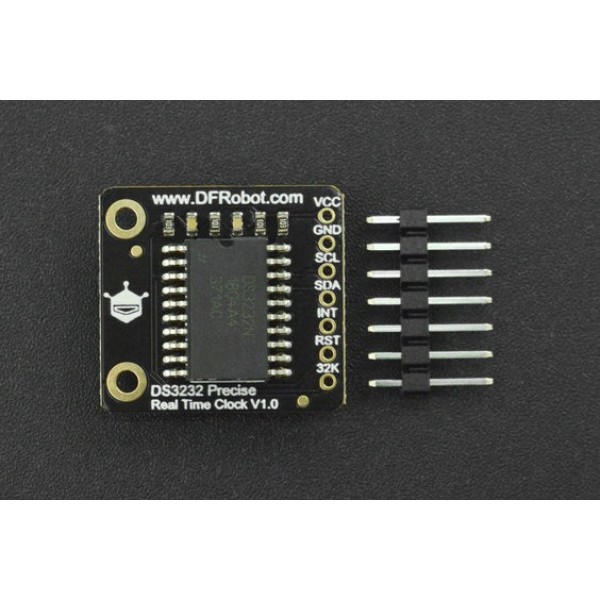

Package contents	1x DS3232 RTC module 1x Male pin header 7p
