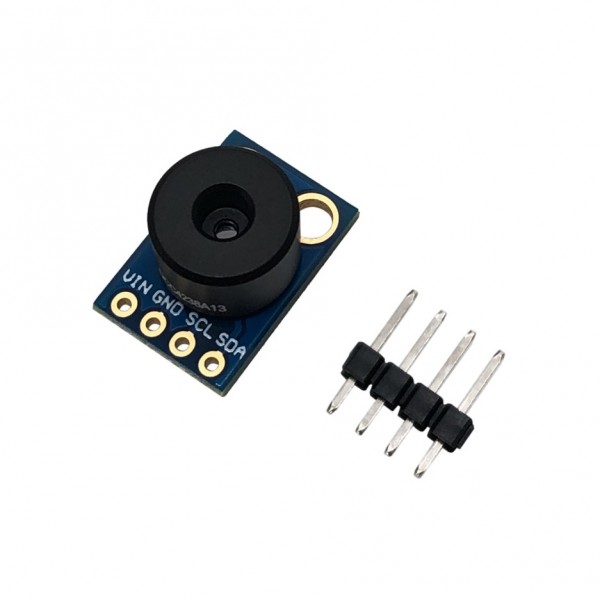

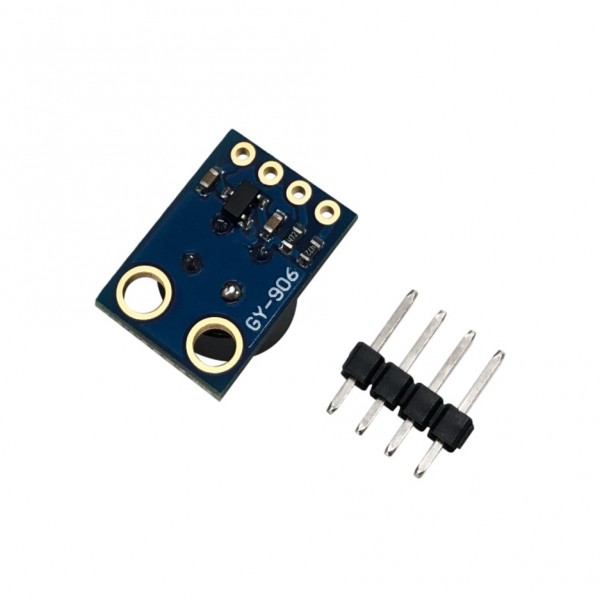

Non-contact IR Temperature Sensor Module - MLX90614-DCC - 35°

Non-contact IR Temperature Sensor Module - MLX90614-DCC - 35°
Non-contact IR Temperature Sensor Module - MLX90614-DCC - 35°
2-4 Weeks
Non-contact IR Temperature Sensor Module - MLX90614-DCC - 35°
Non-contact IR Temperature Sensor Module - MLX90614-DCC - 35°
Non-contact IR Temperature Sensor Module - MLX90614-DCC - 35°
  • Availability: 2-4 Weeks
  • SKU: 005002
Based on 0 review(s) - Write a review
€10.25
Ex Tax: €8.47
Add to Cart
Add to wishlist

This non-contact IR temperature sensor can be used to measure temperature of an object from a distance. This variant is extra accurate around 38°C, making it well suited for measuring body temperature.

See the following page for an Arduino IDE library: MLX90614

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over Non-contact IR Temperature Sensor Module - MLX90614-DCC - 35°

This product has 0 review(s) in total.

Tags: Sensors , Temperature , Non-contact IR Temperature Sensor Module - MLX90614-DCC - 35° , 005002 , GY , GY-906DCC , Temperature sensor , I2C

Specifications

General
Brand GY
Manufacturer model/SKU GY-906DCC
Features Temperature sensor
General physical appearance
Main color Blue
Weight [g] 3
Dimension X [mm] 17
Dimension Y [mm] 12
Mounting options Mounting hole(s)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Default I2C address 0x5A
Adjustable I2C address Yes
(via I2C)
Built-in pull-up resistor(s) [kΩ] 4.7
Temperature sensor
Sensor (chip) MLX90614-DCC
Maximum measuring angle (FOV) [°] 35
Minimum measuring range [°C] -70
Maximum measuring range [°C] 380
Smallest resolution [°C] 0.02
Maximum resolution [bit] 17
Accuracy [±°C] 0.5
(typical, see datasheet for details)
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x GY-906
1x 4p pinheader male
