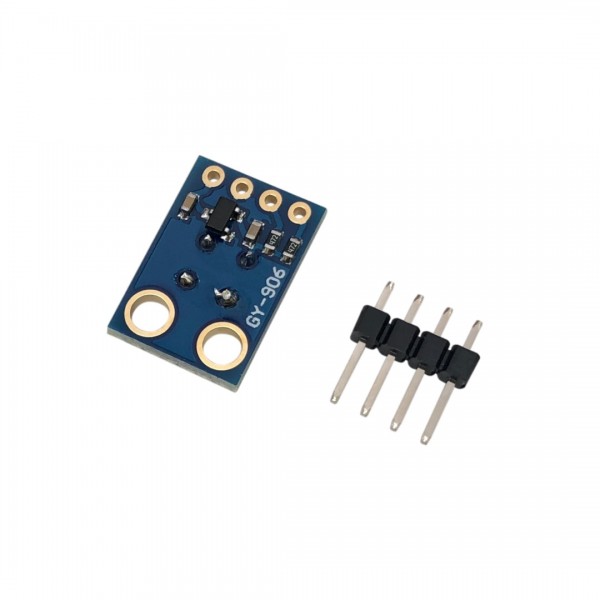

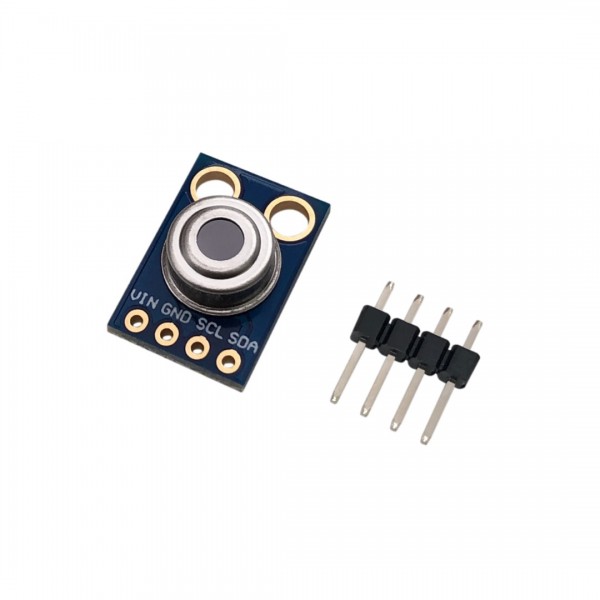

Name: Non-contact IR Temperature Sensor Module - MLX90614-BAA - 90° - GY-906BAA
SKU: 005050
Price: 8.5 EUR
Availability: InStock

Non-contact IR Temperature Sensor Module - MLX90614-BAA - 90°

Based on 0 review(s) - Write a review

€8.50

Ex Tax: €7.02

Qty

Add to Cart

Add to wishlist

20+ pieces in stock

This non-contact IR temperature sensor can be used to measure temperature of an object from a distance.

See the following page for an Arduino IDE library: MLX90614

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

This product has 0 review(s) in total.

Tags: Non-contact IR Temperature Sensor Module - MLX90614-BAA - 90° , GY-906BAA , Temperature

General
Brand	GY
Manufacturer model/SKU	GY-906BAA
Features	Temperature sensor
General physical appearance
Main color	Blue
Weight [g]	2
Dimension X [mm]	17
Dimension Y [mm]	12
Mounting options	Mounting hole(s)
Form factor	Module (general)
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	3.3
IO-pin output voltage [V]	3.3
Communication
Hardware interface(s)	I2C
Default I2C address	0x5A
Adjustable I2C address	Yes (via I2C)
Built-in pull-up resistor(s) [kΩ]	4.7
Temperature sensor
Sensor (chip)	MLX90614-BAA
Maximum measuring angle (FOV) [°]	90
Minimum measuring range [°C]	-70
Maximum measuring range [°C]	380
Smallest resolution [°C]	0.02
Maximum resolution [bit]	17
Accuracy [±°C]	0.5 (typical, see datasheet for details)
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm)
IO-connector(s)	Through hole solder pin(s) (2.54mm)
Package contents
Package contents	1x GY-906 1x 4p pinheader male
