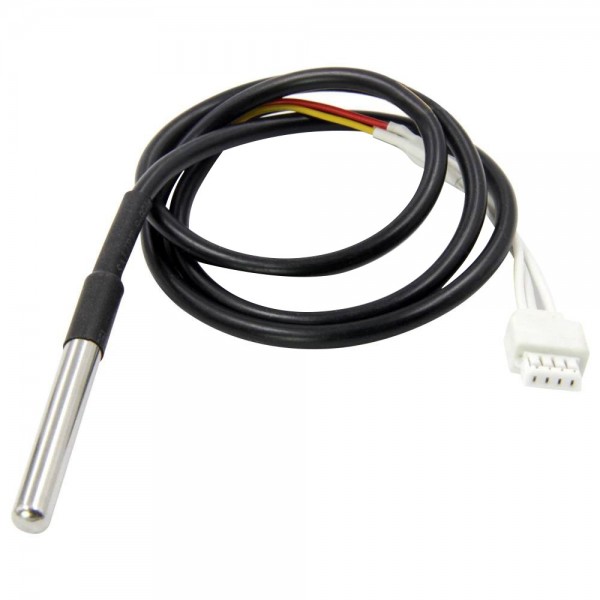

LilyGO TTGO Waterproof DS18B20 Temperature Sensor

LilyGO TTGO Waterproof DS18B20 Temperature Sensor
2-4 Weeks
LilyGO TTGO Waterproof DS18B20 Temperature Sensor
  • Availability: 2-4 Weeks
  • SKU: 004691
Based on 0 review(s) - Write a review
€4.50
Ex Tax: €3.72
10 or more €4.25
20 or more €4.00
50 or more €3.75
100 or more €3.50
Add to Cart
Add to wishlist

A temperature sensor that is easy to use in combination with, among others, the TTGO T5 4.7 E-paper modules or TTGO T-Higrow modules.

Please login or register to review

Reviews Over LilyGO TTGO Waterproof DS18B20 Temperature Sensor

This product has 0 review(s) in total.

Tags: Sensors , Temperature , LilyGO TTGO Waterproof DS18B20 Temperature Sensor , 004691 , LilyGO TTGO , L715 , Temperature sensor , One-Wire

Specifications

General
Brand LilyGO TTGO
Manufacturer model/SKU L715
Minimum operating temperature [°C] -55
Maximum operating temperature [°C] 125
Features Temperature sensor
General physical appearance
Main color Black
Weight [g] 24
Dimension X [mm] 6
Dimension Y [mm] 6
Dimension Z [mm] 50
Water and dust protection Splash-proof
Form factor Wire/cable
Communication
Hardware interface(s) One-Wire
Temperature sensor
Sensor (chip) DS18B20
Minimum measuring range [°C] -55
Maximum measuring range [°C] 125
Smallest resolution [°C] 0.0625
Maximum resolution [bit] 12
Accuracy [±°C] 0.5
( -10°C to 85°C)
Connectors
Power supply connector(s) CJT A2004 female
IO-connector(s) CJT A2004 female
Wire/cable
Wire/cable length [m] 0.5
Package contents
Package contents 1x TTGO Waterproof DS18B20 Temperature Sensor
