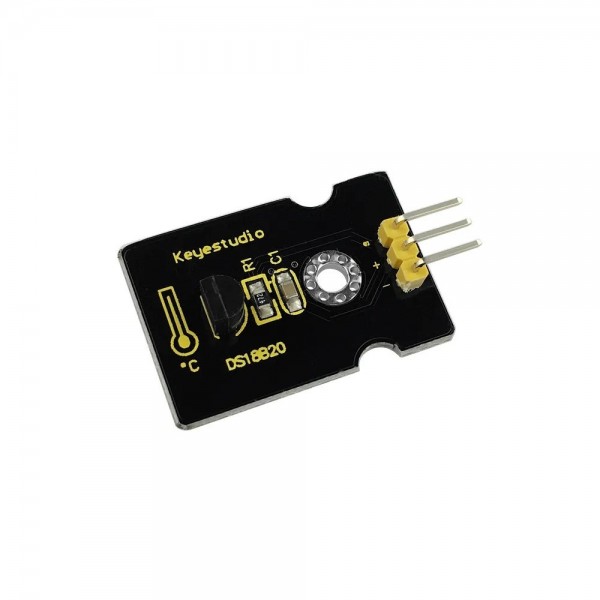

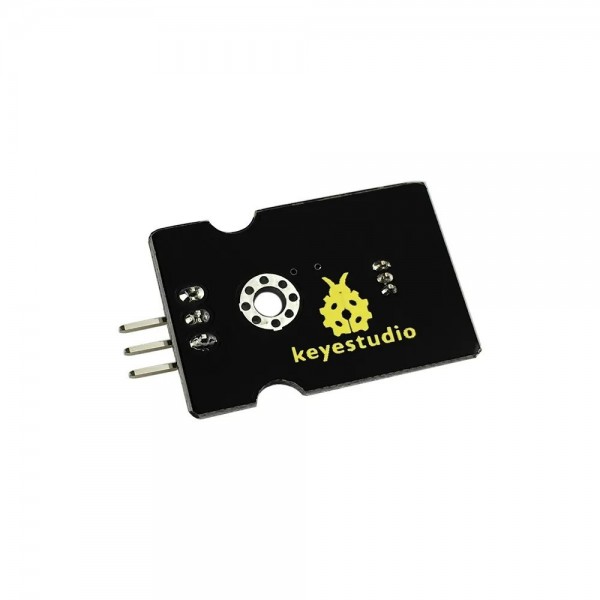

Keyestudio DS18B20 Temperature Sensor Module

Keyestudio DS18B20 Temperature Sensor Module
Keyestudio DS18B20 Temperature Sensor Module
Keyestudio DS18B20 Temperature Sensor Module
Keyestudio DS18B20 Temperature Sensor Module
Keyestudio DS18B20 Temperature Sensor Module
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 005796
Based on 0 review(s) - Write a review
€3.00
Ex Tax: €2.48
Add to Cart
Add to wishlist

A digital temperature sensor from Keyestudio.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Keyestudio DS18B20 Temperature Sensor Module

This product has 0 review(s) in total.

Tags: Sensors , Temperature , Keyestudio DS18B20 Temperature Sensor Module , 005796 , Keyestudio , KS0023 , Temperature sensor , One-Wire

Specifications

General
Brand Keyestudio
Manufacturer model/SKU KS0023
Features Temperature sensor
General physical appearance
Main color Black
Weight [g] 3
Dimension X [mm] 30
Dimension Y [mm] 20
Mounting options Pin headers
Mounting hole(s)
Diameter mounting hole(s) [mm] 3.2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3
Maximum supply voltage [V DC] 5.5
Minimum IO-pin input voltage [V] 3
Maximum IO-pin input voltage [V] 5.5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) One-Wire
Built-in pull-up resistor(s) [kΩ] 4.7
Temperature sensor
Sensor (chip) DS18B20
Minimum measuring range [°C] -55
Maximum measuring range [°C] 125
Maximum resolution [bit] 12
Accuracy [±°C] 0.5
Connectors
Power supply connector(s) Pin header male (2.54mm)
IO-connector(s) Pin header male (2.54mm)
Package contents
Package contents 1x DS18B20 Temperature Sensor
