DS18B20 Temperature Sensor with cable - Waterproof - 1m

DS18B20 Temperature Sensor with cable - Waterproof - 1m
DS18B20 Temperature Sensor with cable - Waterproof - 1m
DS18B20 Temperature Sensor with cable - Waterproof - 1m
DS18B20 Temperature Sensor with cable - Waterproof - 1m
DS18B20 Temperature Sensor with cable - Waterproof - 1m
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 000524
Based on 2 review(s) - Write a review
€5.00
Ex Tax: €4.13
10 or more €4.75
20 or more €4.50
50 or more €4.25
100 or more €4.00
200 or more €3.75
500 or more €3.50
Add to Cart
Add to wishlist

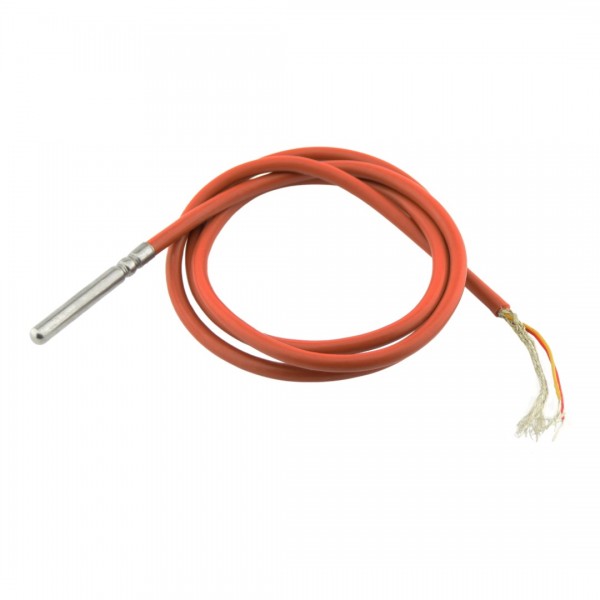

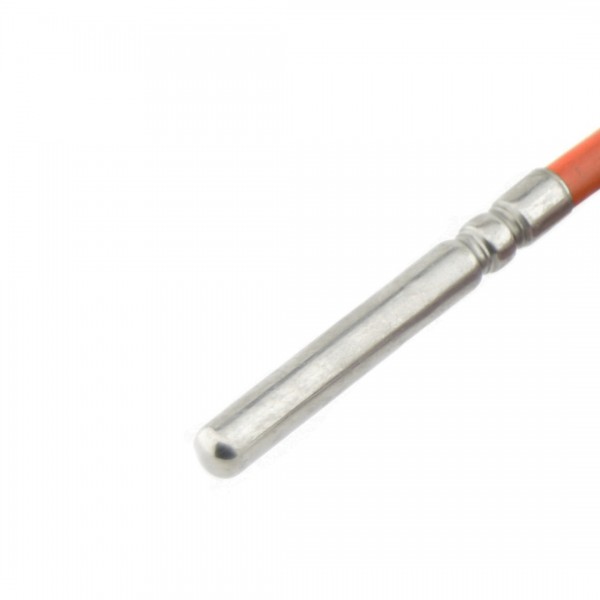

A DS18B20 temperature sensor housed in a stainless steel casing and extended with a cable. The sensor can be easily connected with this adapter: DS18B20 Adapter.

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DS18B20 Temperature Sensor with cable - Waterproof - 1m

This product has 2 review(s) in total.

Tags: Sensors , Temperature , DS18B20 Temperature Sensor with cable - Waterproof - 1m , 000524 , No brand , Temperature sensor , One-Wire

Specifications

General
Brand No brand
Features Temperature sensor
General physical appearance
Main color Orange
Weight [g] 40
Dimension X [mm] 6
Dimension Y [mm] 6
Dimension Z [mm] 51
Water and dust protection IP67
Form factor Wire/cable
General electrical properties
Minimum supply voltage [V DC] 3
Maximum supply voltage [V DC] 5.5
Minimum IO-pin input voltage [V] 0.8
Maximum IO-pin input voltage [V] 5.5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) One-Wire
Built-in pull-up resistor(s) [kΩ] None
Temperature sensor
Sensor (chip) DS18B20
Minimum measuring range [°C] -55
Maximum measuring range [°C] 125
Smallest resolution [°C] 0.0625
Maximum resolution [bit] 12
Accuracy [±°C] 0.5
Connectors
Power supply connector(s) Loose wire
IO-connector(s) Loose wire
Wire/cable
Wire/cable length [m] 1
Pinout
Power supply pin Red wire
Ground/min White wire
Data Yellow wire
Package contents
Package contents 1x Temperature sensor
