DFRobot Gravity Analog LM35 Temperature Sensor
- Availability: Directly available from warehouse in Eindhoven
- SKU: 006240
€4.75
Ex Tax: €3.93
Your shopping cart is empty!

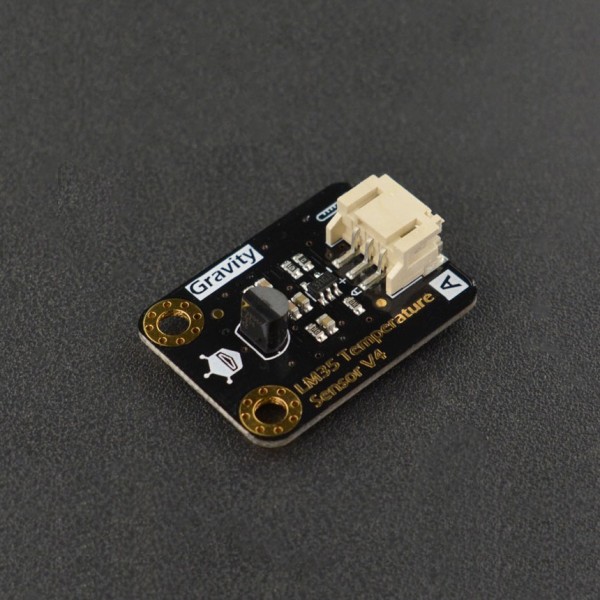

A temperature sensor module from DFRobot, based on the LM35 sensor. The module outputs an analog signal which can be read by a microcontroller.
See the following page for more information: Wiki
| General | |
| Brand | DFRobot |
| Manufacturer model/SKU | DFR0023 |
| Model revision | V4 |
| Minimum operating temperature [°C] | -40 |
| Maximum operating temperature [°C] | 150 |
| Features | Temperature sensor |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 2 |

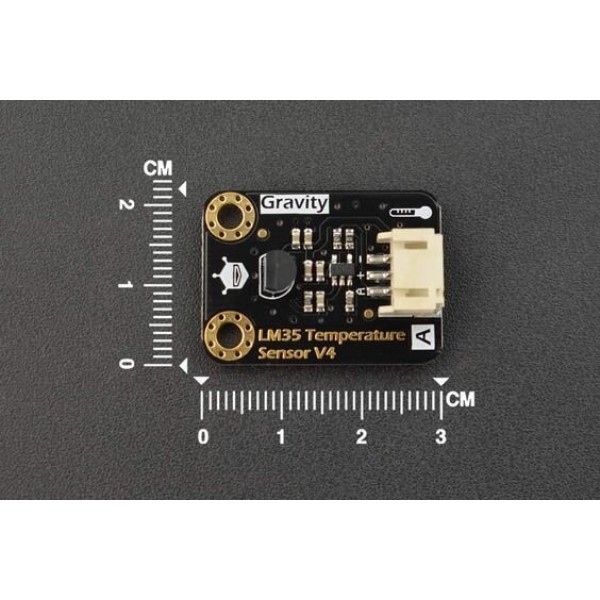

| Dimension X [mm] | 30 |
| Dimension Y [mm] | 22 |
| Mounting options | Mounting hole(s) |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 5 |
| IO-pin output voltage [V] | 1 (max @100°C) |
| Communication | |
| Hardware interface(s) | Analog |
| Temperature sensor | |
| Sensor (chip) | LM35D |
| Minimum measuring range [°C] | 0 |
| Maximum measuring range [°C] | 100 |
| Accuracy [±°C] | 1.0 |
| Connectors | |
| Power supply connector(s) | JST-PH (compatible) male |
| IO-connector(s) | JST-PH (compatible) male |
| Package contents | |

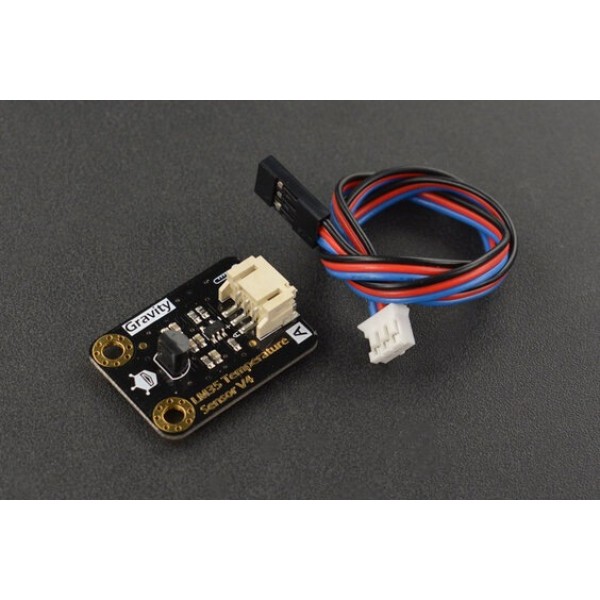

| Package contents | 1x Temperature sensor 1x JST-PH to DuPont female cable |
