Name: DFRobot Fermion STS35 Digital Temperature Sensor - DFROBOT-SEN0434
Brand: DFRobot
SKU: 004599
Price: 12 EUR
Availability: InStock

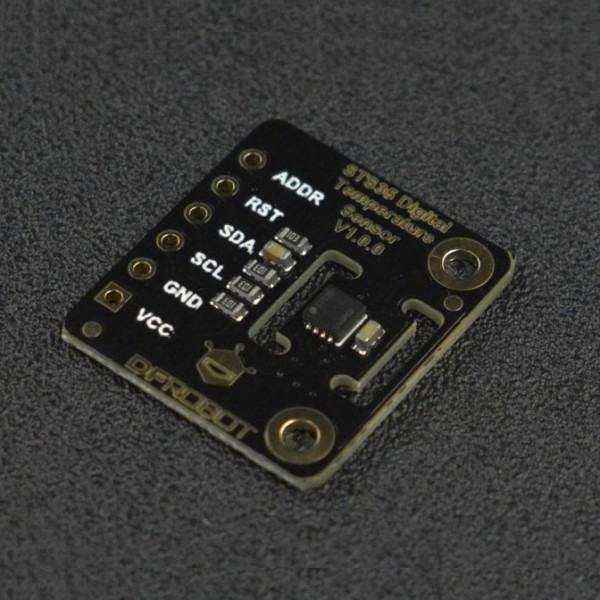

DFRobot Fermion STS35 Digital Temperature Sensor

Availability: Directly available from warehouse in Eindhoven
SKU: 004599

Based on 0 review(s) - Write a review

€12.00

Ex Tax: €9.92

Qty

Add to Cart

Add to wishlist

Only 9 pieces in stock

Description
Reviews

There is no product description available yet.

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Fermion STS35 Digital Temperature Sensor

Average Rating:

This product has 0 review(s) in total.

Tags: DFRobot Fermion STS35 Digital Temperature Sensor , DFROBOT-SEN0434 , Temperature

Specifications

General
Brand	DFRobot
Manufacturer model/SKU	SEN0434
Minimum operating temperature [°C]	-40
Maximum operating temperature [°C]	125
Features	Temperature sensor
General physical appearance
Main color	Black
Weight [g]	1
Dimension X [mm]	20
Dimension Y [mm]	18
Mounting options	Mounting hole(s)
Diameter mounting hole(s) [mm]	2.0
Form factor	Module (general)
Experiment PCB friendly	Yes
General electrical properties
Minimum supply voltage [V DC]	3.3
Maximum supply voltage [V DC]	5
Minimum IO-pin input voltage [V]	3.3
Maximum IO-pin input voltage [V]	5
IO-pin output voltage [V]	Equal to supply voltage
Communication
Hardware interface(s)	I2C
Temperature sensor
Sensor (chip)	STS35
Minimum measuring range [°C]	-40
Maximum measuring range [°C]	125
Smallest resolution [°C]	0.01
Accuracy [±°C]	0.3 (between -40°C and 90°C) (see datasheet for more information)
Connectors
Power supply connector(s)	Through hole solder pin(s) (2.54mm)
IO-connector(s)	Through hole solder pin(s) (2.54mm)
Package contents

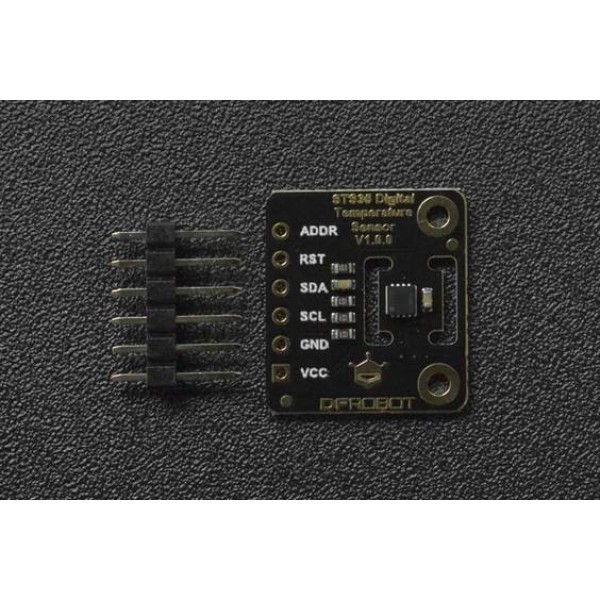

Package contents	1x Temperature sensor module 1x Pinheader male 8p
