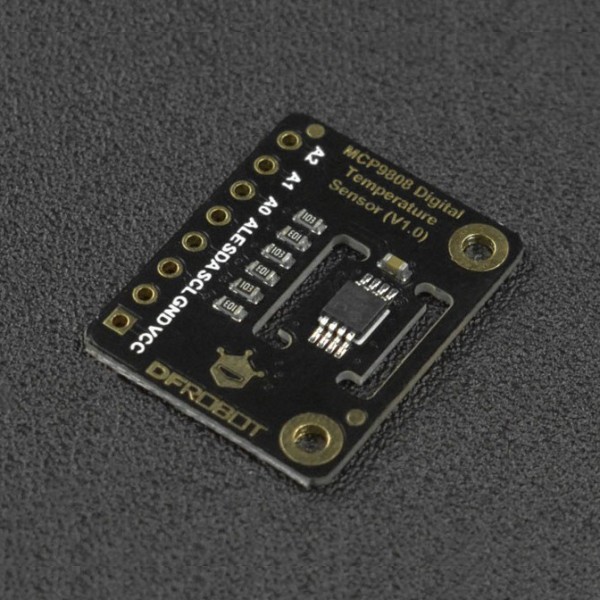

DFRobot Fermion MCP9808 I2C Temperature Sensor
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004591
€7.50
Ex Tax: €6.20
Your shopping cart is empty!
There is no product description available yet.
See the following page for more information: Wiki
| General | |
| Brand | DFRobot |
| Manufacturer model/SKU | SEN0435 |
| Minimum operating temperature [°C] | 125 |
| Maximum operating temperature [°C] | -40 |
| Features | Temperature sensor |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 2 |

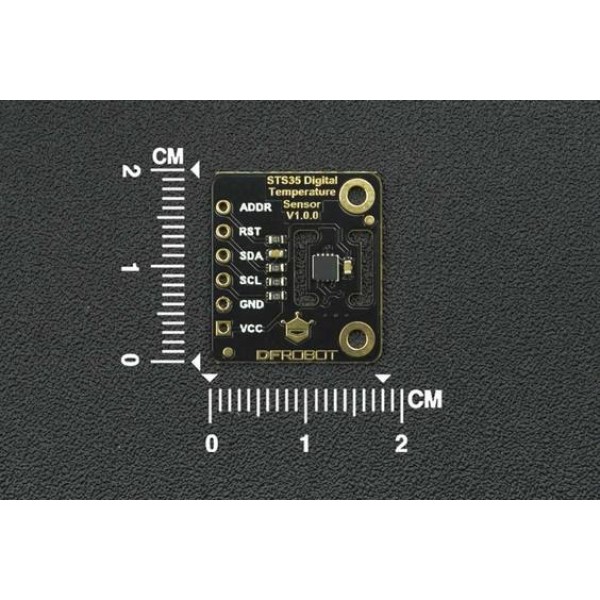

| Dimension X [mm] | 23 |
| Dimension Y [mm] | 19 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 2 |
| Form factor | Module (general) |
| Experiment PCB friendly | Yes |
| General electrical properties | |
| Minimum supply voltage [V DC] | 2.7 |
| Maximum supply voltage [V DC] | 5.5 |
| Minimum IO-pin input voltage [V] | 2.7 |
| Maximum IO-pin input voltage [V] | 5.5 |
| IO-pin output voltage [V] | Equal to supply voltage |
| Communication | |
| Hardware interface(s) | I2C |
| Temperature sensor | |
| Sensor (chip) | MCP9808 |
| Minimum measuring range [°C] | -40 |
| Maximum measuring range [°C] | 125 |
| Smallest resolution [°C] | 0.0625 |
| Accuracy [±°C] | 0.5 (from -20°C to 100°C) 1 (from -40°C to 125°C) |
| Connectors | |
| Power supply connector(s) | Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | Through hole solder pin(s) (2.54mm) |
| Package contents | |
| Package contents | 1x Temperature sensor module 1x Pinheader male 8p |
