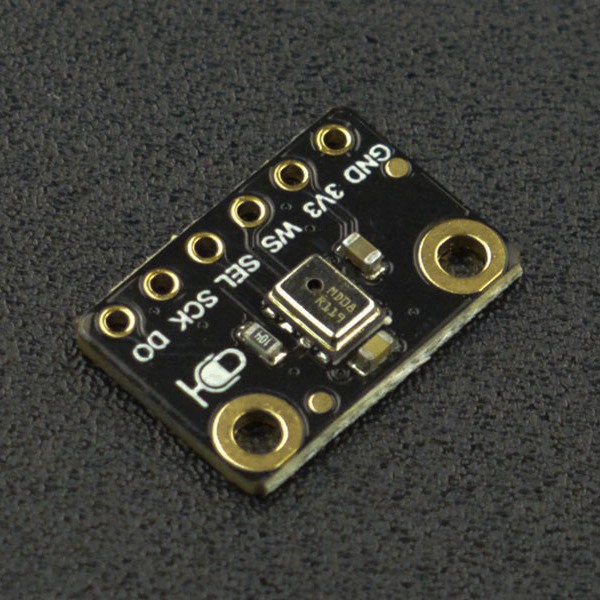

DFRobot Fermion I2S MEMS Microphone Module - Breakout

DFRobot Fermion I2S MEMS Microphone Module - Breakout
DFRobot Fermion I2S MEMS Microphone Module - Breakout
DFRobot Fermion I2S MEMS Microphone Module - Breakout
DFRobot Fermion I2S MEMS Microphone Module - Breakout
Discontinued
DFRobot Fermion I2S MEMS Microphone Module - Breakout
DFRobot Fermion I2S MEMS Microphone Module - Breakout
DFRobot Fermion I2S MEMS Microphone Module - Breakout
DFRobot Fermion I2S MEMS Microphone Module - Breakout
DFRobot Fermion I2S MEMS Microphone Module - Breakout
  • Availability: Discontinued
  • SKU: 005041
Based on 0 review(s) - Write a review
€6.00
Ex Tax: €4.96
Add to Cart
Add to wishlist

See the following page for more information: Wiki

Please login or register to review

Reviews Over DFRobot Fermion I2S MEMS Microphone Module - Breakout

This product has 0 review(s) in total.

Tags: Sensors , Sound , DFRobot Fermion I2S MEMS Microphone Module - Breakout , 005041 , DFRobot , SEN0526 , Microphone , I2S

Specifications

General
Brand DFRobot
Manufacturer model/SKU SEN0526
Features Microphone
General physical appearance
Main color Black
Weight [g] 1

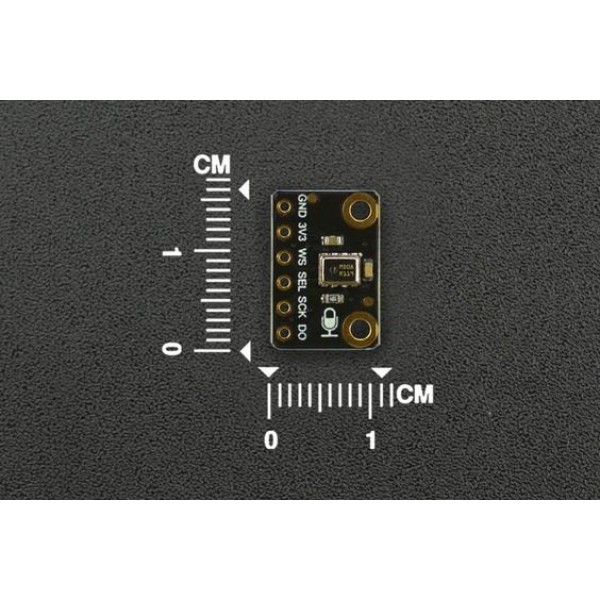

Dimension X [mm] 16
Dimension Y [mm] 11
Mounting options Mounting hole(s)
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 3.3
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2S
Sound sensor
Sensor (chip(s)) MSM261S4030H0R
Type Microphone
Sensor technology MEMS
Minimum frequency [Hz] 100
Maximum frequency [kHz] 10
Sensitivity [dB] -26
(±1)
SNR [dB] 61
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
Package contents

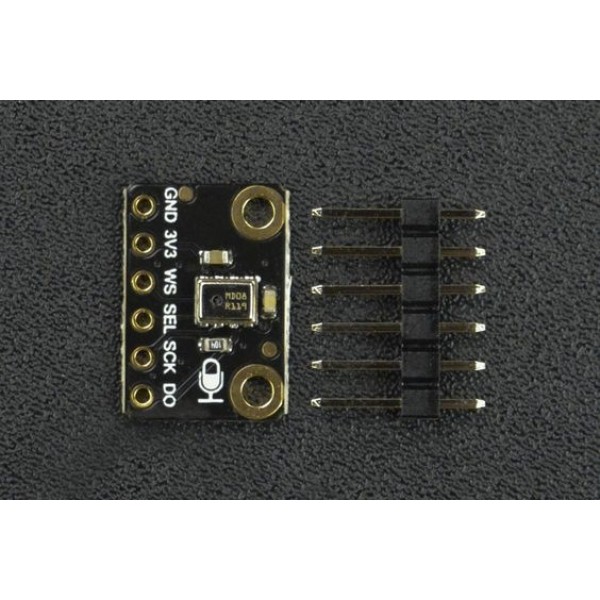

Package contents 1x Microphone module
1x Male pin header 6p
