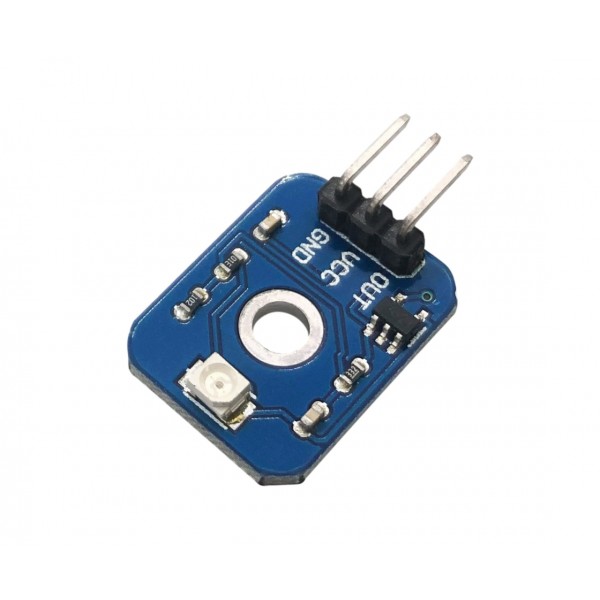

UV Light Sensor Module - 200-370nm

With this module you can easily measure the UV light intensity indoors and/or outdoors. The module provides an analog output signal.

Specifications:

• Supply voltage: 3.3-5V DC
• Maximum current consumption: 0.1mA
• Average current consumption: 0.06mA

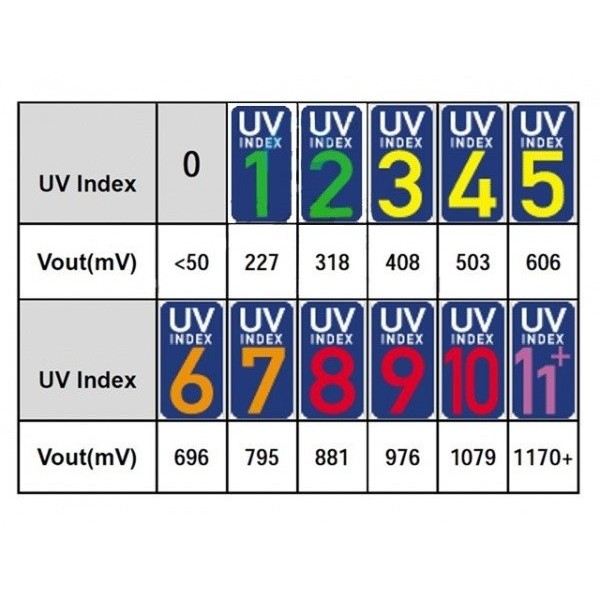

• Output voltage: 0 - 1.2V (0 - 11 on UV index, see images)
• Accuracy: ±1 UV index
• Wavelength detection range: 200 - 370nm
• Working temperature: -20 - 85°C
• Mounting hole diameter: 3.6mm
• Dimensions PCB: 20 x 15mm

Package contents:

• 1x UV Light Sensor Module

Check this link for the Arduino example code: RobTillaart/AnalogUVSensor
