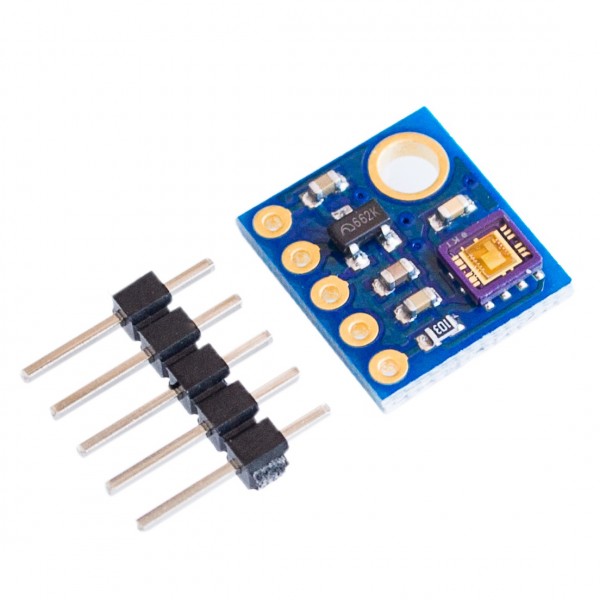

ML8511 UV Light Sensor Module

With this module based on an ML8511 chip you can easily measure the UV light intensity inside and/or outside. The module measures both UV-A and UV-B light and gives an analog output signal.

Specifications:

• Input voltage: 3.3-5V DC
• Input current (peak): 500uA
• Input current (standby): 0.1uA
• Output voltage: See datasheet
• Wavelength detection range: 280-390nm
• 3mm mounting hole
• PCB dimensions: 12.8x11.6mm

For more information, see the datasheet under the tab "Downloads and links".

Pinout:

• VIN: 5V Input Voltage
• 3V3: 3.3V Input voltage, or 3.3V output voltage when the module is powered with 5V on the VIN pin
• GND: Ground
• OUT: Analog output of the module
• EN: Enable pin: Connect this pin to GND to let the module go into standby mode

Check the tab "Downloads" for more information and/or downloads.
