M5Stack Light Unit

M5Stack Light Unit
M5Stack Light Unit
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 002304
Based on 0 review(s) - Write a review
€5.50
Ex Tax: €4.55
Add to Cart
Add to wishlist

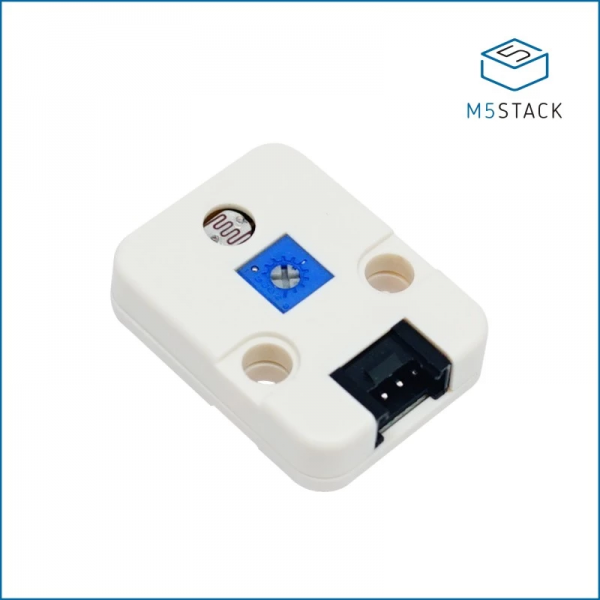

This is a unit with an LDR sensor for M5Stack with both a digital and analog output.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Light Unit

This product has 0 review(s) in total.

Tags: M5Stack , Unit , M5Stack Light Unit , 002304 , M5Stack , U021 , Light sensor , Analog , Digital

Specifications

General
Brand M5Stack
Manufacturer model/SKU U021
Features Light sensor
General physical appearance
Main color White
Weight [g] 5
Dimension X [mm] 32
Dimension Y [mm] 24
Dimension Z [mm] 8
Mounting options LEGO (compatible) holes
Form factor M5Stack Unit
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) Analog
Digital
Light sensor
Sensor (chip) LDR
Measurable light Visible
Light sensor type Light intensity
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Package contents
Package contents 1x M5Stack light unit
1x Grove cable
