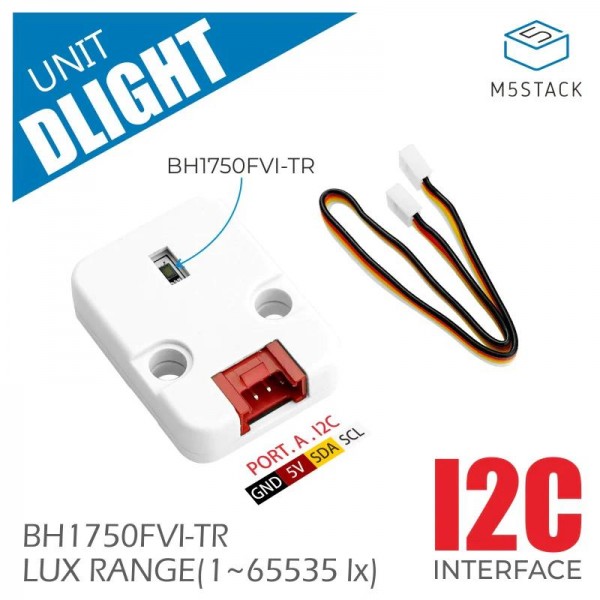

M5Stack Ambient Light Sensor Unit

M5Stack Ambient Light Sensor Unit
M5Stack Ambient Light Sensor Unit
M5Stack Ambient Light Sensor Unit
M5Stack Ambient Light Sensor Unit
M5Stack Ambient Light Sensor Unit
M5Stack Ambient Light Sensor Unit
M5Stack Ambient Light Sensor Unit
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 004497
€7.00
Ex Tax: €5.79

This is an ambient light sensor module with a Grove connection for M5Stack. The module works via I2C communication.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Ambient Light Sensor Unit

This product has 0 review(s) in total.

Specifications

General
Brand M5Stack
Manufacturer model/SKU U136
Features Light sensor
General physical appearance
Main color White
Weight [g] 5
Dimension X [mm] 32
Dimension Y [mm] 24
Dimension Z [mm] 8
Mounting options LEGO (compatible) holes
Form factor M5Stack Unit
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 3.3
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) I2C
Default I2C address 0x23
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] 4.7
Light sensor
Sensor (chip) BH1750FVI
Measurable light Visible
Light sensor type Light intensity
Minimum measuring range [lux] 1
Maximum measuring range [lux] 65535
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Package contents
Package contents 1x M5Stack Ambient Light Sensor Unit
1x Grove cable
