DFRobot Gravity UV Index Sensor - I2C - UART

DFRobot Gravity UV Index Sensor - I2C - UART
DFRobot Gravity UV Index Sensor - I2C - UART
DFRobot Gravity UV Index Sensor - I2C - UART
DFRobot Gravity UV Index Sensor - I2C - UART
DFRobot Gravity UV Index Sensor - I2C - UART
DFRobot Gravity UV Index Sensor - I2C - UART
DFRobot Gravity UV Index Sensor - I2C - UART
  • Availability: Directly available from warehouse in Eindhoven
  • SKU: 007458
Based on 0 review(s) - Write a review
€10.00
Ex Tax: €8.26
Add to Cart
Add to wishlist

This compact Gravity UV index sensor from DFRobot is ideal for measuring UV light intensisty. The module contains a separate microcontroller that reads out the light sensor. This microcontroller can then be read out via I2C or UART (selectable via a switch). The UV light intensity can be read as voltage level, UV-index, or 'Risk Level'.

See the following page for more information: Wiki

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over DFRobot Gravity UV Index Sensor - I2C - UART

This product has 0 review(s) in total.

Tags: Optical , Light and Color , DFRobot Gravity UV Index Sensor - I2C - UART , 007458 , DFRobot , SEN0636 , Light sensor , I2C , UART

Specifications

General
Brand DFRobot
Manufacturer model/SKU SEN0636
Minimum operating temperature [°C] -30
Maximum operating temperature [°C] 80
Features Light sensor
General physical appearance
Main color Black
Weight [g] 2
Dimension X [mm] 30
Dimension Y [mm] 22
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 3.1
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3.3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3.3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) I2C
UART
Default baudrate 9600
Default I2C address 0x23
Adjustable I2C address No
Built-in pull-up resistor(s) [kΩ] 10
Light sensor
Sensor (chip) GUVA-S12SD
Measurable light UV
Light sensor type Light intensity
Peak wavelength(s) [nm] 360
(240-370nm)
Connectors
Power supply connector(s) JST-PH (compatible) male
IO-connector(s) JST-PH (compatible) male

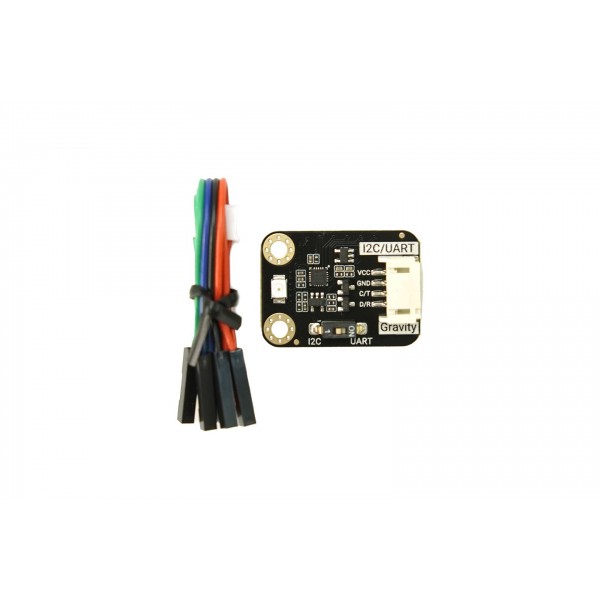

Package contents
Package contents 1x JST-PH to DuPont female cable
1x DFRobot Gravity UV Index Sensor
