AS7331 UV Light Sensor Module

AS7331 UV Light Sensor Module
AS7331 UV Light Sensor Module
2-4 Weeks
AS7331 UV Light Sensor Module
AS7331 UV Light Sensor Module
AS7331 UV Light Sensor Module
  • Availability: 2-4 Weeks
  • SKU: 006120
Based on 0 review(s) - Write a review
€17.00
Ex Tax: €14.05
10 or more €16.50
20 or more €16.00
50 or more €15.75
100 or more €15.50
Add to Cart
Add to wishlist

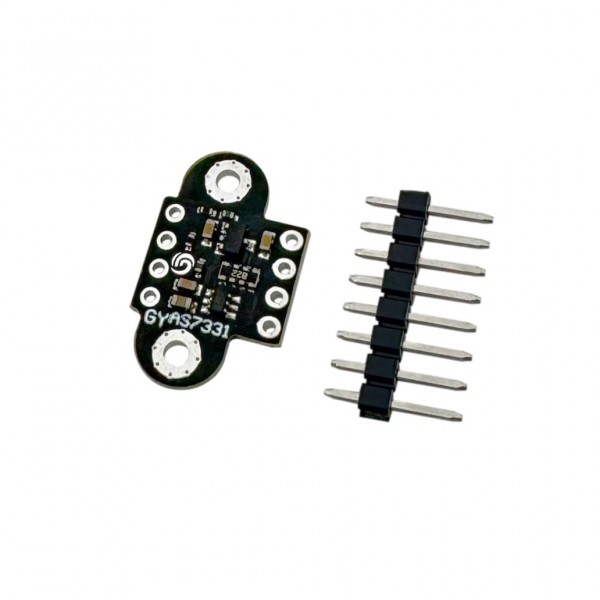

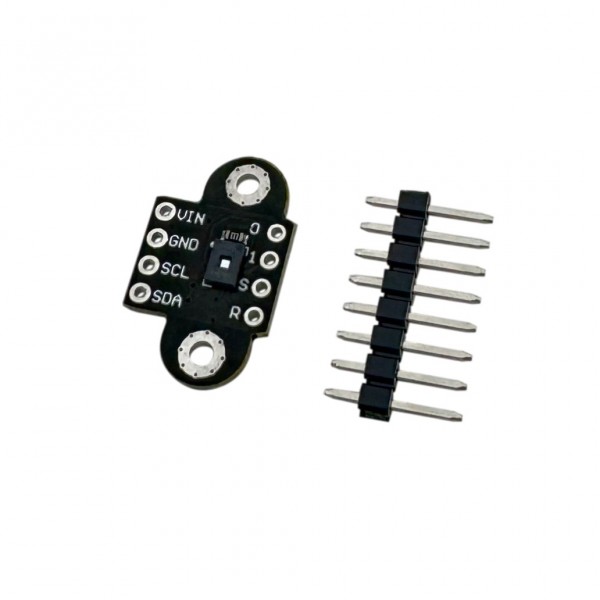

This AS7331 UV light sensor module can measure the intensity of UV light between (UVA, UVB and UVC).

Check the tab "Downloads" for more information and/or downloads.

Please login or register to review

Reviews Over AS7331 UV Light Sensor Module

This product has 0 review(s) in total.

Tags: Optical , Light and Color , AS7331 UV Light Sensor Module , 006120 , GY , GY-AS7331 , Light sensor , I2C

Specifications

General
Brand GY
Manufacturer model/SKU GY-AS7331
Features Light sensor
General physical appearance
Main color Black
Weight [g] 1
Dimension X [mm] 21
Dimension Y [mm] 13
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2
Form factor Module (general)
General electrical properties
Minimum supply voltage [V DC] 3
Maximum supply voltage [V DC] 5
Minimum IO-pin input voltage [V] 3
Maximum IO-pin input voltage [V] 5
IO-pin output voltage [V] Equal to supply voltage
Communication
Hardware interface(s) I2C
Default I2C address 0x74
Adjustable I2C address Yes
Built-in pull-up resistor(s) [kΩ] 8.2
Light sensor
Sensor (chip) AS7331
Measurable light UV
Light sensor type Light intensity
Peak wavelength(s) [nm] 260
300
360
Connectors
Power supply connector(s) Through hole solder pin(s) (2.54mm)
IO-connector(s) Through hole solder pin(s) (2.54mm)
Package contents
Package contents 1x UV light sensor module
1x Male pin header 8p
