M5Stack Infrared IR Reflective Sensor Unit

M5Stack Infrared IR Reflective Sensor Unit
M5Stack Infrared IR Reflective Sensor Unit
2-4 Weeks
M5Stack Infrared IR Reflective Sensor Unit
M5Stack Infrared IR Reflective Sensor Unit
M5Stack Infrared IR Reflective Sensor Unit
  • Availability: 2-4 Weeks
  • SKU: 007122
Based on 0 review(s) - Write a review
€6.50
Ex Tax: €5.37
Add to Cart
Add to wishlist

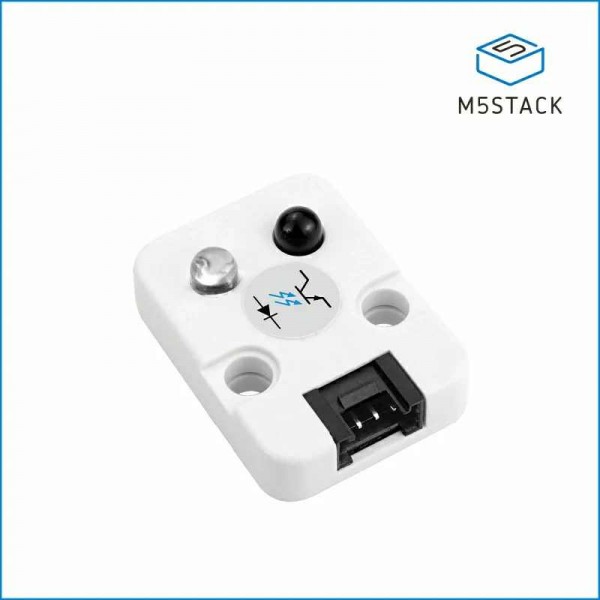

This is a Reflective IR Unit for the M5Stack, designed to detect reflected infrared light from nearby objects. The module has both an analog and a digital output, of which the threshold is adjustable with a potentiometer.

See the following page for more information: Wiki

Please login or register to review

Reviews Over M5Stack Infrared IR Reflective Sensor Unit

This product has 0 review(s) in total.

Tags: M5Stack , Unit , M5Stack Infrared IR Reflective Sensor Unit , 007122 , M5Stack , U175 , Enclosure , Object detection sensor , Analog , Digital

Specifications

General
Brand M5Stack
Manufacturer model/SKU U175
Features Enclosure
Object detection sensor
General physical appearance
Main color White
Weight [g] 5
Dimension X [mm] 32
Dimension Y [mm] 24
Dimension Z [mm] 12
(incl. LEDs)
Mounting options LEGO (compatible) holes
Form factor M5Stack Unit
Module (general)
General electrical properties
Minimum supply voltage [V DC] 5
Maximum supply voltage [V DC] 5
IO-pin output voltage [V] 3.3
Communication
Hardware interface(s) Analog
Digital
Object detection sensor
Type IR
Detection type Threshold
Adjustable sensitivity Yes
Connectors
Power supply connector(s) HY2.0 (Grove) male
IO-connector(s) HY2.0 (Grove) male
Enclosure
Material Polycarbonate (PC)

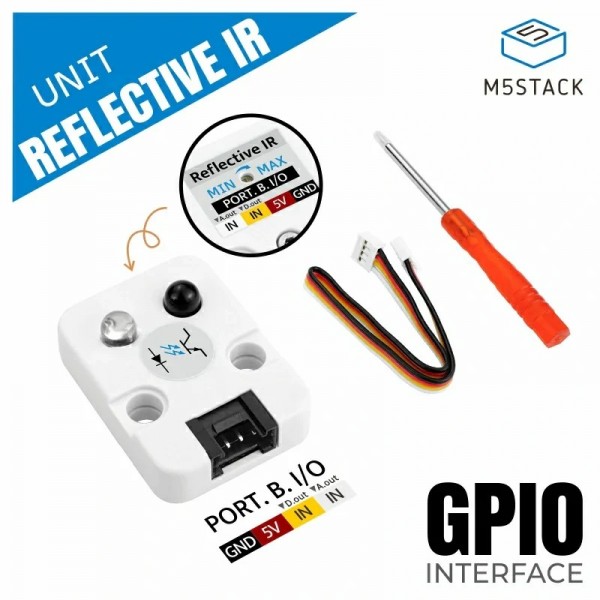

Package contents
Package contents 1x Grove female cable
1x Infrared IR Reflective Sensor Unit
1x Screw driver
