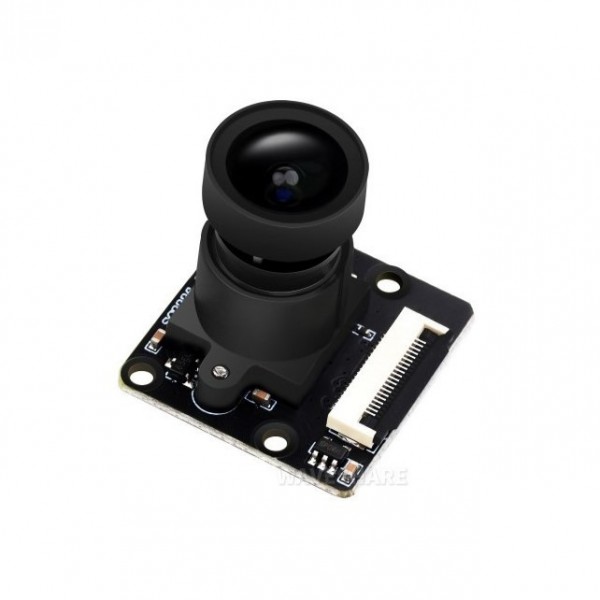

Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible

Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
2-4 Weeks
Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible
  • Availability: 2-4 Weeks
  • SKU: 005889
Based on 0 review(s) - Write a review
€10.00
Ex Tax: €8.26
Add to Cart
Add to wishlist

A camera module that is compatible with LuckFox development boards.

See the following page for more information: Wiki

Please login or register to review

Reviews Over Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible

This product has 0 review(s) in total.

Tags: Optical , Cameras and Scanners , Waveshare SC3336 3MP Camera Module (B) - CSI - LuckFox Compatible , 005889 , Waveshare , 25553 , Camera , MIPI (CSI)

Specifications

General
Brand Waveshare
Manufacturer model/SKU 25553
Features Camera
General physical appearance
Main color Black
Weight [g] 5

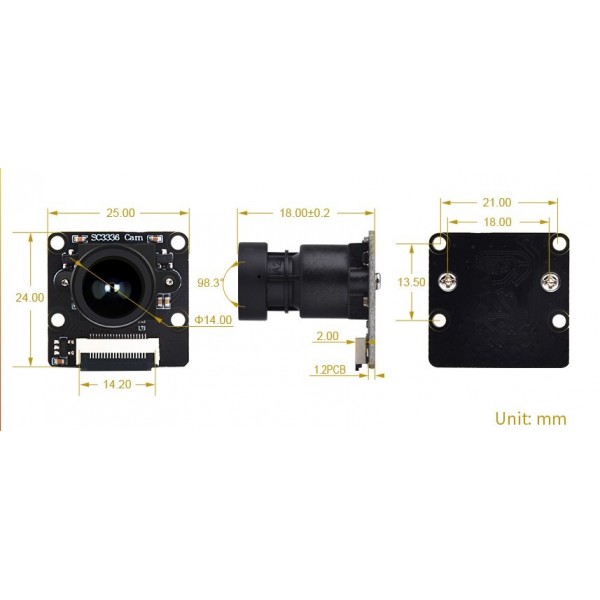

Dimension X [mm] 25
Dimension Y [mm] 24
Mounting options Mounting hole(s)
Diameter mounting hole(s) [mm] 2.1
Form factor Module (general)
Communication
Hardware interface(s) MIPI (CSI)
Scanner/camera
Type Camera
Sensor(chip) SC3336
Lense type Normal
Number of pixels long side 2304
Number of pixels short side 1296
Maximum frame rate [Hz] 30
Focal length [mm] 3.95
Aperture 2.00
Maximum viewing angle (diagonal) [°] 98.3
Connectors
Power supply connector(s) FFC female 20p 0.50mm
IO-connector(s) FFC female 20p 0.50mm
Wire/cable
Wire/cable length [m] 0.15
Package contents
Package contents 1x SC3336 3MP camera module

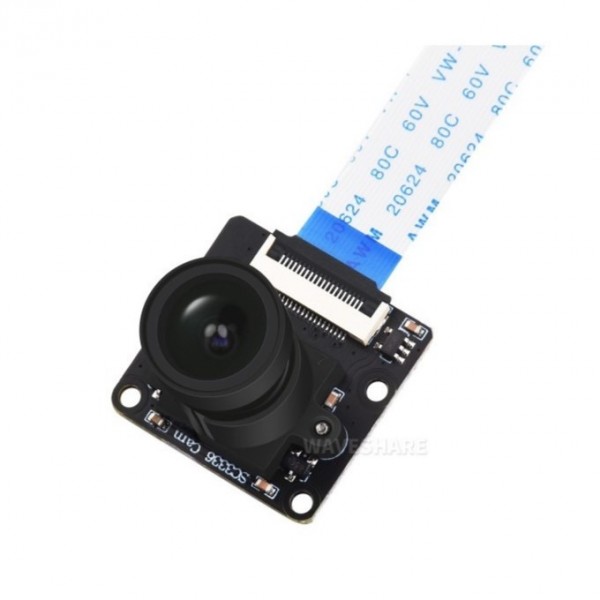

1x FFC 20p cable 15cm
