Waveshare OV5640 5MP USB Camera (B)
- Availability: Directly available from warehouse in Eindhoven
- SKU: 004770
€26.25
Ex Tax: €21.69
Your shopping cart is empty!
A USB camera from Waveshare with automatic focus. The camera is compatible with Windows, Raspberry Pi and Jetson Nano, among others.
See the following page for more information: Wiki
| General | |
| Brand | Waveshare |
| Manufacturer model/SKU | 21635 |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 50 |
| Features | Camera |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 3 (without cable) 28 (with cable) |

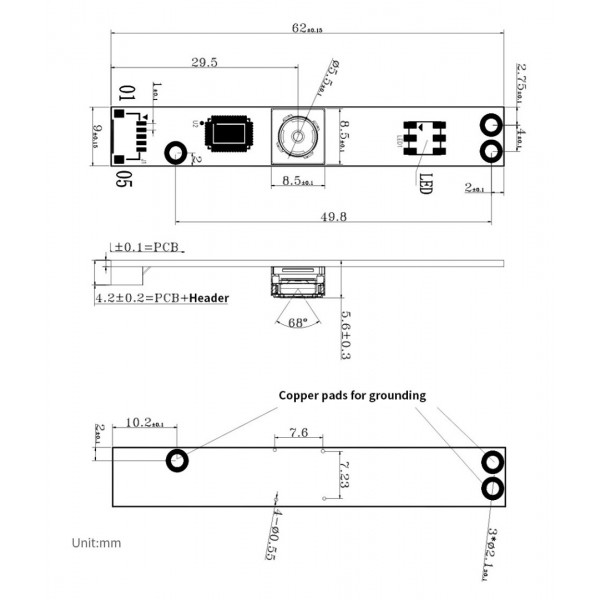

| Dimension X [mm] | 62 |
| Dimension Y [mm] | 9 |
| Mounting options | Mounting hole(s) |
| Diameter mounting hole(s) [mm] | 2.1 |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 5 |
| Maximum supply voltage [V DC] | 5 |
| Communication | |
| Hardware interface(s) | USB |
| Scanner/camera | |
| Type | Camera |
| Sensor(chip) | OV5640 |
| Lense type | Normal |
| Number of pixels long side | 2592 |
| Number of pixels short side | 1944 |
| Maximum frame rate [Hz] | 30 |
| Focal length [mm] | 3.29 |
| Aperture | 2.8 |
| Maximum viewing angle (diagonal) [°] | 68 |
| Connectors | |
| Power supply connector(s) | USB-A male JST-SH (compatible) male |
| IO-connector(s) | USB-A male JST-SH (compatible) male |
| Package contents | |

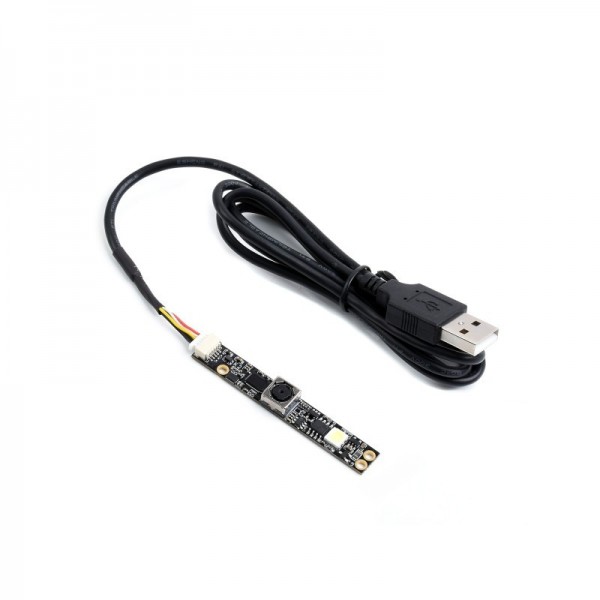

| Package contents | 1x Camera module 1x USB-A male to JST-SH female cable |
